6609032-7

Overview

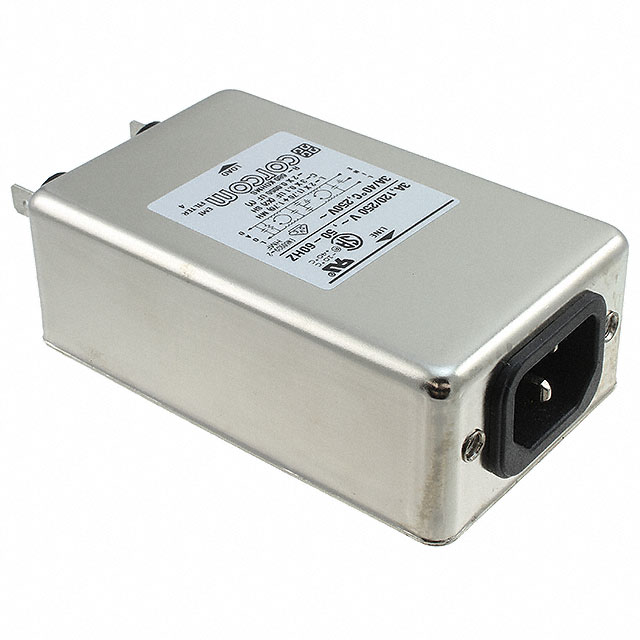

The TE Connectivity Corcom Filters model 6609032-7 is a single-phase EMC/EMI line filter designed for chassis mounting. It features a two-stage configuration with a rated AC voltage of 250V and a current capacity of 3A at 50/60Hz. The unit utilizes an IEC 320-C14 input connector and quick connect terminals for output. Certified by CSA, UR, and VDE, it operates within a temperature range of -10°C to 40°C.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• IEC 320-C14 input interface for standardized power connection
• Quick connect terminal style for efficient circuit integration
• Chassis mount design for secure physical installation

Applications

• Power supply units requiring EMI mitigation
• Battery chargers needing noise reduction
• Portable devices with sensitive electronics

Procurement Notes

Verify the specific ordering suffix and internal part number (TE Internal #: 6609032-7) against your bill of materials. Confirm that the RoHS status is acceptable for your assembly requirements, as this component may not be RoHS compliant. Ensure the operating environment stays within the specified -10°C to 40°C range for optimal performance.

Selection Notes

Select this component when a single-phase, two-stage filter is required for 3A applications. The IEC 320-C14 input and quick connect outputs define the interface constraints. Consider the chassis mounting requirement and the specific certification needs (CSA, UR, VDE) during the design phase to ensure compatibility with end-product regulations.

Part Context

This component belongs to the Corcom R series of single-phase filters from TE Connectivity. It is functionally similar to the 3VR7M but distinguished by its specific internal numbering and terminal configuration. The series is engineered for general-purpose electromagnetic interference reduction in AC power lines.

Replacement Considerations

The FN9246-3-06 is listed as a similar substitute part number from TE Connectivity Schaffner. Verify mechanical dimensions and electrical specifications before substitution.
