Product Detailed Parameters
- Description：LINE FILTER 250VAC 3A CHASS MNT
- Series：DK
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：3:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Inductance：1.76mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

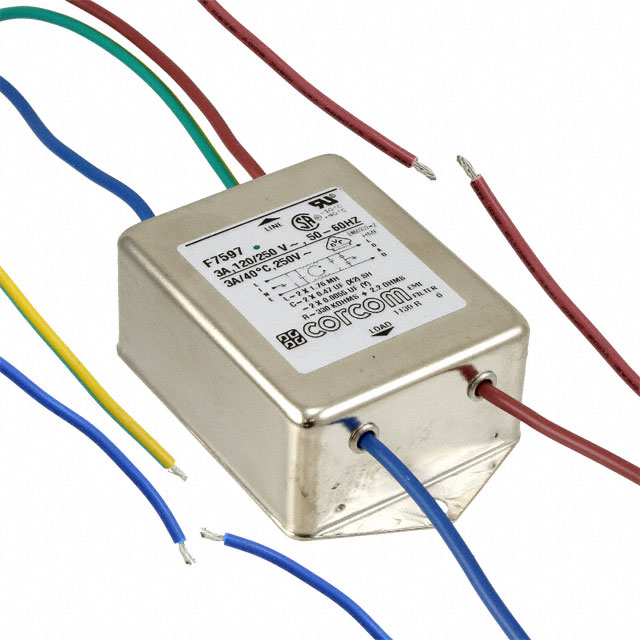

The TE Connectivity Corcom Filters 6609034-4 is a single-phase EMC/EMI line filter designed for chassis or panel mounting. It features wire lead termination and supports a rated current of 3A at 250VAC, 50/60Hz. The component utilizes a single-stage filtering architecture to suppress electromagnetic interference in power lines. It is classified as a commercial-grade filter suitable for general-purpose applications requiring reliable noise reduction.
Feature Summary
- Single-stage EMI/RFI filtering for power line noise suppression
- Wire lead termination for flexible integration
- Chassis or panel mount installation capability
Applications
- Commercial electronic equipment power entry
- General-purpose industrial control systems
- Medical device power interfaces
Procurement Notes
Verify the specific datasheet version and compliance certificates (UL, CSA, VDE) prior to procurement. Confirm that the wire lead length and gauge meet the system requirements. Ensure the mounting style aligns with the chassis design constraints. Cross-reference the part number with official TE Connectivity documentation to avoid counterfeit components.
Selection Notes
Select this component when a 3A rated, single-phase EMI filter with wire leads is required. Consider the single-stage filtering performance for standard commercial noise environments. Evaluate the chassis mounting option against panel mount alternatives based on enclosure design. Verify voltage ratings match the local AC supply standards.
Part Context
This part belongs to the TE Connectivity Corcom Filters series, specializing in power line filters. The 6609034-4 model specifically addresses single-phase applications requiring compact filtering solutions. It complements other Corcom products offering varying current ratings and mounting styles for diverse power entry module needs.
Replacement Considerations
Consult the official Corcom selector chart for direct substitutes with identical electrical specifications. Verify compatibility with existing mounting hardware and wire termination methods. Ensure replacement parts maintain the same certification approvals for regulatory compliance.
