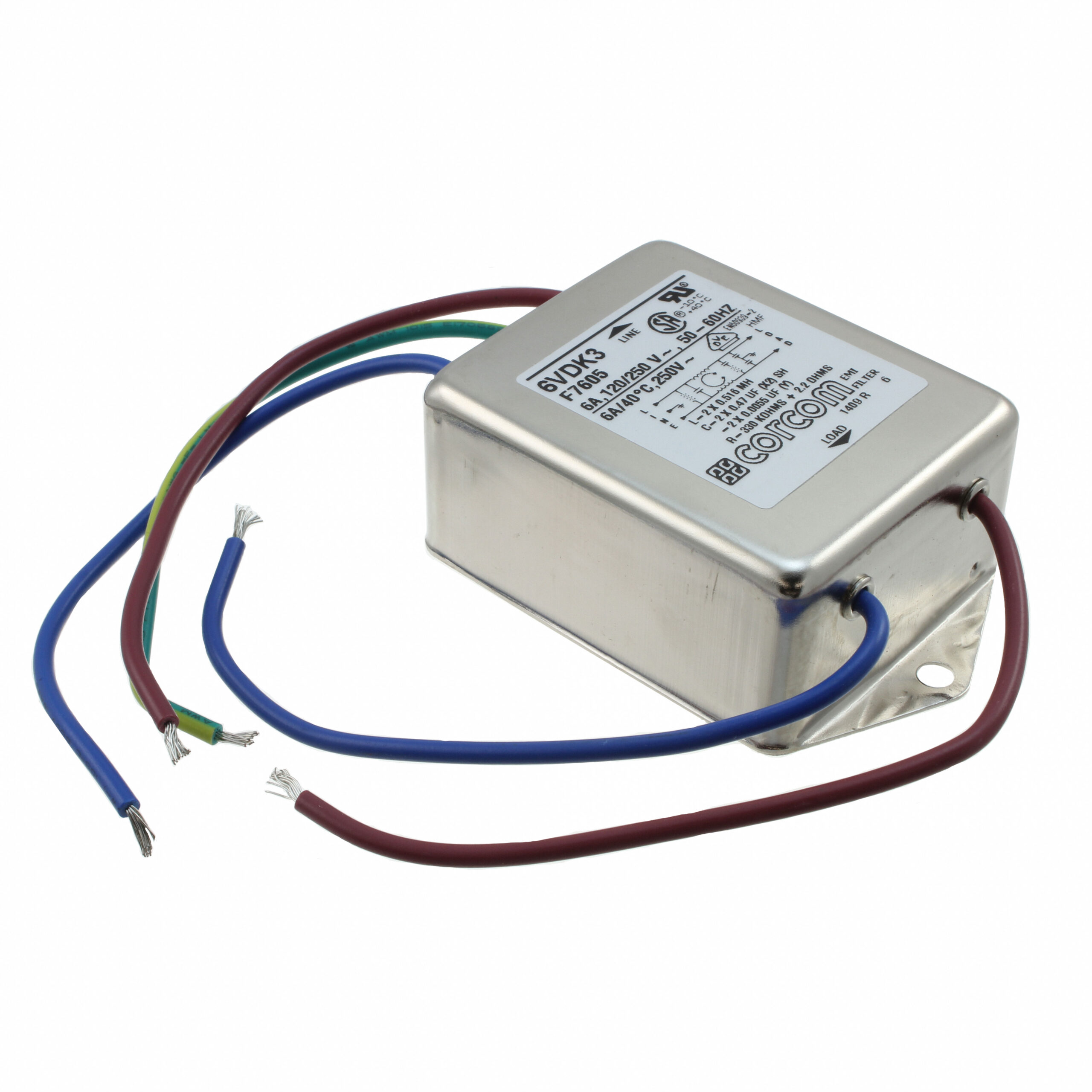

6609034-6

Description：LINE FILTER 250VAC 6A CHASS MNT
Series：DK
Mfr：TE Connectivity Corcom Filters
Package：Bulk

SKU:f4cfdb6da818 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 6A CHASS MNT
Series：DK
Mfr：TE Connectivity Corcom Filters
Package：Bulk
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：6:00 AM
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UR, VDE
Operating Temperature：-10°C ~ 40°C
Mounting Type：Chassis Mount
Termination Style：Wire Leads
Inductance：516µH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

6609034-6

Overview

The TE Connectivity Corcom Filters part number 6609034-6 is a single-phase EMC/EMI power line filter designed for chassis mounting. It features wire lead termination and operates at a rated voltage of 250VAC with a current capacity of 6A at 50/60Hz. The unit utilizes a single-stage filtering configuration to suppress electromagnetic and radio frequency interference in commercial applications.

Feature Summary

Provides single-stage EMI/RFI suppression for AC power lines
Designed for direct chassis mounting installation
Utilizes wire lead connections for circuit integration

Applications

Commercial electronic equipment requiring EMI/RFI filtering
Single-phase AC power line protection
Chassis-mounted industrial control systems

Procurement Notes

Verify the specific datasheet for the 6609034-6 model to confirm exact electrical characteristics and mechanical dimensions before procurement. Ensure compatibility with the target chassis mounting requirements and wire gauge specifications. Confirm that the single-stage filtering performance meets the specific EMI/RFI attenuation needs of the application environment.

Selection Notes

Select this component when a single-stage, chassis-mountable EMI/RFI filter is required for 6A, 250VAC single-phase circuits. Consider the wire lead termination style for assembly methods. Evaluate if single-stage filtering provides sufficient noise reduction compared to multi-stage alternatives for the specific interference profile.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for various industrial and commercial applications. The 6609034-6 variant specifically addresses single-phase filtering needs with a focus on chassis mounting convenience and standard wire lead connectivity for straightforward integration into power entry modules or internal power distribution systems.
