6609035-2

Overview

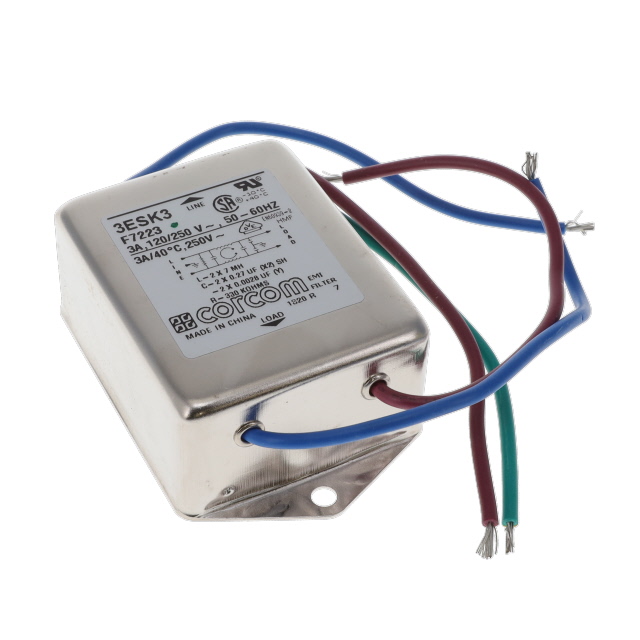

TE Connectivity Corcom Filters model 6609035-2 is a single-phase EMI/RFI power line filter designed for commercial applications. It features a current rating of 3A and operates at 250VAC. The unit utilizes wire lead input and output terminations for circuit integration. Installation is achieved via flange mounting, ensuring secure chassis attachment. The component complies with CSA, UL, and VDE safety standards.

Feature Summary

• Provides EMI and RFI filtering for single-phase AC power lines
• Utilizes wire lead connections for direct circuit integration
• Features flange mounting for secure panel installation

Applications

• Commercial electronic equipment requiring noise suppression
• Single-phase AC power distribution systems
• Chassis-mounted industrial control units

Procurement Notes

Verify the specific datasheet version to confirm terminal configuration details. Ensure the receiving system supports wire lead termination methods. Confirm that the flange dimensions match the intended panel cutout requirements before finalizing procurement decisions.

Selection Notes

Select this component when a 3A rated single-phase filter is required for commercial-grade noise reduction. The wire lead design suits applications where direct wiring is preferred over PCB mounting. Verify voltage ratings align with the 250VAC operational environment.

Part Context

This part belongs to the TE Connectivity Corcom SK series of single-phase filters. It is engineered for general-purpose EMI/RFI suppression in commercial environments. The series offers various current ratings and termination options to suit different power entry module designs.

Replacement Considerations

Consult official substitution charts for equivalent Corcom models with matching current and voltage ratings. Verify compatibility of flange dimensions and wire lead specifications before replacing.
