6609036-3

Overview

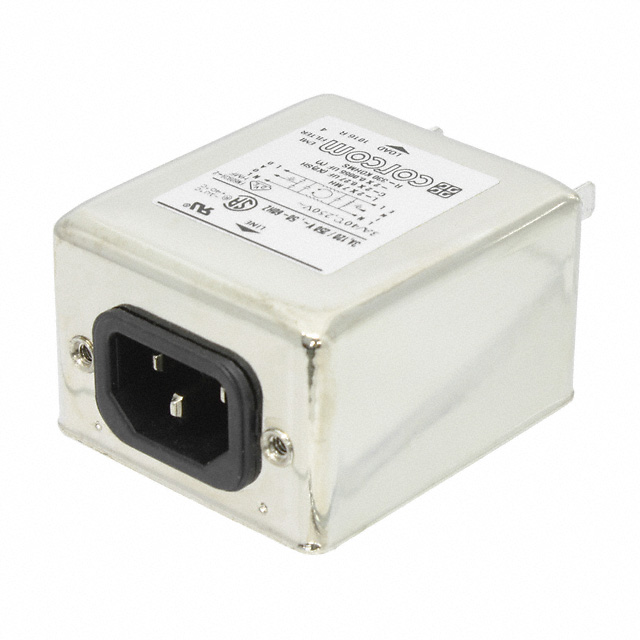

The TE Connectivity Corcom 6609036-3 is a single-phase EMC/EMI power line filter designed for chassis mounting. It features an IEC input connector and .250-inch Faston output terminals. The component is rated for 250 VAC and supports a current capacity of 3 A at 50/60 Hz operating frequencies. This single-stage filter provides essential noise suppression for sensitive electronic equipment within the specified electrical limits.

Feature Summary

• Single-stage EMI/RFI noise attenuation for single-phase AC power lines
• IEC inlet interface combined with standard .250-inch Faston blade outputs
• Chassis mount configuration for secure panel integration

Applications

• General purpose electronic equipment requiring EMI suppression
• Industrial control systems utilizing single-phase power inputs
• Medical devices adhering to strict electromagnetic compatibility standards

Procurement Notes

Verify the specific terminal configuration matches your system requirements, as this model utilizes an IEC input with Faston outputs. Confirm that the 3 A current rating and 250 VAC voltage limit align with your circuit design. Ensure chassis mounting provisions are available in the enclosure. Cross-reference the manufacturer part number to avoid confusion with similar SK series variants that may have different termination styles or current capacities.

Selection Notes

Select this component when a compact, single-phase filter is required for general-purpose applications. The IEC input simplifies connection to standard power cords, while Faston outputs facilitate easy wiring to internal circuitry. Consider the 3 A rating to ensure adequate headroom for peak loads. Verify that the chassis mount style fits the physical constraints of the target enclosure compared to PCB mount alternatives.

Part Context

This component belongs to the TE Connectivity Corcom SK series, which focuses on single-phase filters rated between 3 and 10 Amps. The SK series is characterized by its versatility in termination options and compliance with major international safety standards including UL, CSA, and VDE. It serves as a foundational solution for basic electromagnetic interference mitigation in commercial and industrial hardware.

Replacement Considerations

Direct substitutes within the same series include models like 6609036-7 (6 A) or 6609036-9 (10 A), provided the higher current ratings do not conflict with thermal constraints. Ensure any replacement maintains the IEC input and Faston output configuration to preserve mechanical compatibility.
