6609036-7

Overview

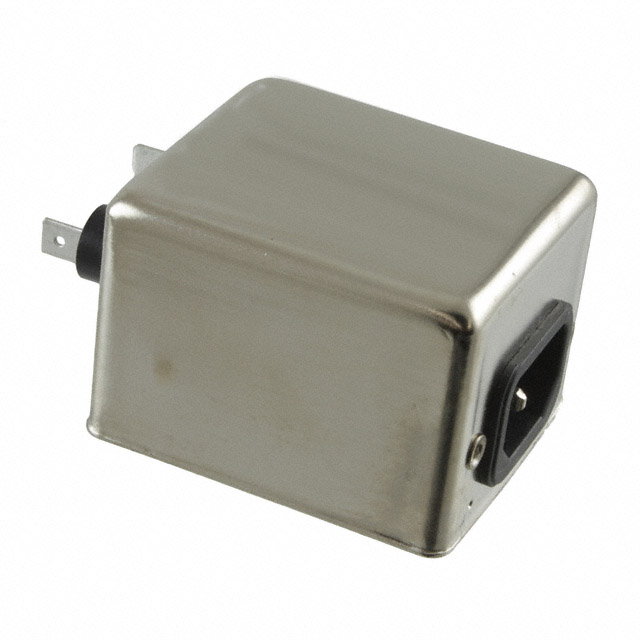

The TE Connectivity Corcom Filters 6609036-7 is a single-phase EMC/RFI power line filter designed for chassis mounting. It features screw termination and operates at 50/60Hz with a rated voltage of 250VAC and current capacity of 6A. The unit has an inductance of 8.73mH and a leakage current of 700uA. Operating temperature ranges from -10°C to 40°C. It holds CSA, UL, and VDE certifications.

Feature Summary

• Provides single-stage EMI/RFI filtering for AC power lines
• Utilizes screw termination style for secure electrical connections
• Designed for direct chassis mounting installation
• Complies with international safety standards including UL, CSA, and VDE

Applications

• Industrial equipment requiring EMI suppression
• Medical devices needing certified power filtering
• General purpose electronic enclosures
• Power supply input stages

Procurement Notes

Verify the specific part number against official TE Connectivity documentation to ensure compatibility with your system requirements. Confirm that the screw termination style matches your wiring infrastructure. Check for any recent product change notices or end-of-life announcements directly from the manufacturer before finalizing procurement decisions.

Selection Notes

Select this component when a single-phase, 6A rated filter with screw terminals is required. Ensure the chassis mounting footprint fits the available space. Verify that the 8.73mH inductance meets the noise attenuation needs of the application. Confirm that the operating temperature range suits the environmental conditions of the installation site.

Part Context

This component belongs to the SK series of Corcom filters, which are engineered for general-purpose electromagnetic interference suppression. The series offers various current ratings and termination options to suit different industrial and commercial applications. This specific model represents a standard configuration within the lineup.

Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternatives. Generic cross-references may not match the specific inductance or certification requirements.
