6609036-9

Overview

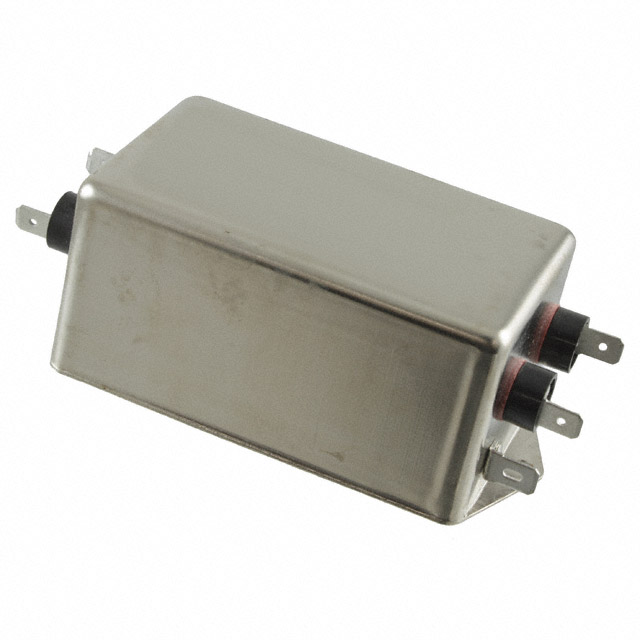

The TE Connectivity Corcom 6609036-9 is a single-phase EMI/EMC power line filter designed for switching power supply emission control. It features a flanged chassis mount configuration with .250" FASTON quick-connect terminals for both input and output connections. The component operates at a voltage rating of 250 VAC and supports a current rating of 10 A at 50/60 Hz frequencies. This single-stage filter belongs to the SK series, providing anti-interference capabilities for general-purpose electronic applications requiring robust radio frequency interference suppression.

Feature Summary

• Single-phase EMI/EMC filtering architecture
• Flanged chassis mounting design
• .250 inch FASTON quick-connect terminal interface

Applications

• Switching power supply emission control
• General-purpose electronic equipment interference suppression
• Single-stage RFI power line filtering

Procurement Notes

Verify the specific TE internal designation 10VSK1 when sourcing to ensure exact model matching. Confirm that the .250 inch FASTON terminal pitch aligns with your PCB or wire harness requirements. Check RoHS compliance status against current regulatory standards for your target market. Ensure the flanged mounting hole dimensions match your chassis cutout specifications before finalizing procurement.

Selection Notes

Select this component when a single-phase, 10 A rated filter is required for chassis-mounted installations. The .250 inch FASTON terminals are suitable for rapid assembly without soldering. Consider the SK series characteristics for standard general-purpose noise attenuation needs. Verify that the 250 VAC rating meets the operational voltage requirements of the protected circuitry.

Part Context

This part belongs to the TE Connectivity Corcom SK Series, which covers single-phase filters ranging from 3 to 10 Amperes. The SK series is widely recognized for its compact form factor and reliable performance in industrial and commercial power applications. The 6609036-9 specifically represents the 10 A variant within this established product family.

Replacement Considerations

Consult official TE Connectivity substitution guides for verified cross-references. Generic equivalents may not match the precise insertion loss characteristics or mechanical mounting dimensions of the original SK series component.
