Product Detailed Parameters
- Description：LINE FILTER 250VAC 10A CHASS MNT
- Series：EP
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：10:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

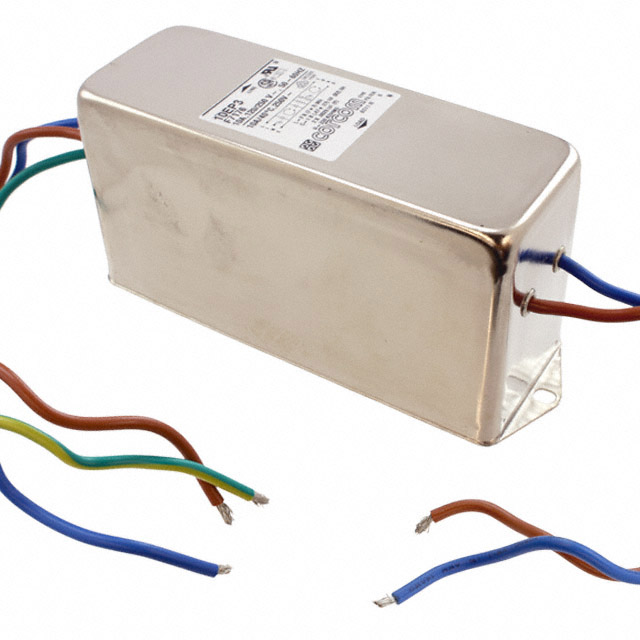

The TE Connectivity Corcom Filters model 6609037-8 is a single-phase EMC/EMI power line filter designed for chassis mounting. It supports a rated current of 10 A and operates at AC voltages up to 250 VAC within a 50/60 Hz frequency range. The component features a two-stage filtering configuration and utilizes wire leads for termination. Certified by CSA, UR, and VDE, it is suitable for general industrial applications requiring robust noise suppression.
Feature Summary
- Two-stage EMI/RFI attenuation architecture
- Chassis mount installation style
- Wire lead termination method
Applications
- Industrial machinery power supplies
- Medical equipment input stages
- General electronic systems requiring EMI suppression
Procurement Notes
Verify the specific datasheet version before procurement, as TE Connectivity may issue Product Change Notifications (PCN) affecting materials or manufacturing locations. Confirm that the wire lead length and gauge meet your assembly requirements. Ensure the chassis mounting holes align with your enclosure design specifications prior to ordering.
Selection Notes
Select this component when a single-phase, 10 A solution with wire leads is required instead of quick-connect terminals. Compare against the 10MV1 series if panel mounting or different terminal styles are preferred. Verify that the two-stage topology provides sufficient attenuation for your specific noise environment compared to single-stage alternatives.
Part Context
This part belongs to the TE Connectivity Corcom Filters portfolio, specializing in electromagnetic interference suppression for power lines. The 6609037-8 variant specifically addresses applications needing direct wire integration rather than PCB or terminal block connections, fitting into the broader category of industrial-grade power line filters.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Evaluate cross-references based on identical electrical ratings (10A, 250VAC, single-phase) and mechanical form factors.
