6609038-1

Overview

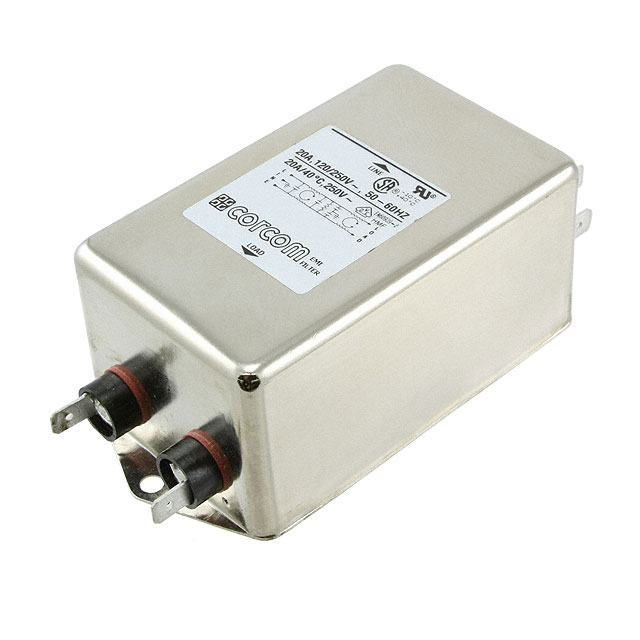

The TE Connectivity Corcom Filters 6609038-1 is a single-phase EMC/EMI line filter rated for 20 A at 250 VAC and 50/60 Hz. It features a two-stage configuration designed to suppress electromagnetic interference in power lines. The component utilizes quick connect terminals for circuit attachment and is intended for chassis mounting applications.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Quick connect terminal interface for rapid assembly

Applications

• Industrial equipment power input stages
• Commercial machinery EMI mitigation
• General purpose AC power line filtering

Procurement Notes

Verify the specific current rating and voltage compatibility against the target application requirements before procurement. Confirm that the chassis mounting style and quick connect termination method align with the system design specifications. Ensure the two-stage filter performance meets the necessary electromagnetic interference standards for the intended deployment environment.

Selection Notes

Select this component when a high-current single-phase solution is required for significant noise reduction. The two-stage design offers superior attenuation compared to single-stage alternatives. Ensure the installation environment supports chassis mounting and that the wiring harness accommodates quick connect terminals for proper integration.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for industrial and commercial applications. The product line focuses on providing reliable electromagnetic interference suppression for sensitive electronic equipment operating on standard AC power networks.

Replacement Considerations

FN2080A-20-06
