6609040-2

Overview

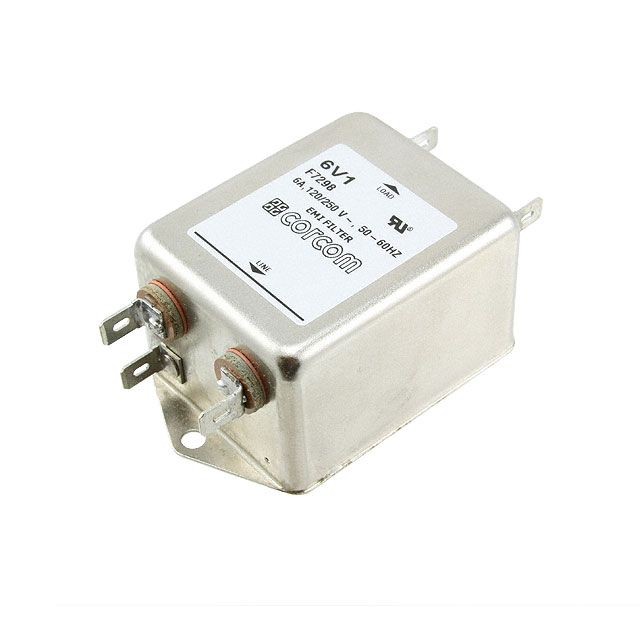

The TE Connectivity Corcom Filters 6609040-2 is a single-phase EMC/EMI line filter designed for commercial applications. It features a two-stage configuration with a rated current of 6 A and operates at voltages up to 250 VAC at 50/60 Hz. The component utilizes quick connect terminals for circuit attachment and is intended for chassis mounting. This filter provides noise suppression for power lines within the specified electrical parameters.

Feature Summary

• Two-stage EMI/RFI filtering architecture
• Quick connect terminal interface
• Chassis mount installation style

Applications

• Commercial equipment power line noise suppression
• General purpose EMC filtering
• Industrial control systems

Procurement Notes

Verify the specific datasheet version and RoHS compliance status before procurement, as manufacturing changes may occur. Confirm that the quick connect terminal dimensions match the target PCB or wire harness specifications. Ensure the chassis mounting requirements align with the enclosure design. Check for any recent Product Change Notices (PCN) affecting the component's physical or electrical characteristics.

Selection Notes

Select this component when a two-stage filtering solution is required for single-phase AC power lines operating at 6 A. The quick connect termination suits automated assembly or rapid wiring processes. Verify that the chassis mounting method fits the available space and structural constraints of the application enclosure compared to panel mount alternatives.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for commercial and industrial use. The 6609040-2 model represents a specific configuration within the broader portfolio, distinguished by its 6 A rating and two-stage design. It serves as a standard solution for electromagnetic interference mitigation in power distribution circuits.

Replacement Considerations

Consult the official Corcom EMI/RFI Filter Selector Chart for verified substitute part numbers. Cross-reference electrical ratings and mounting styles to ensure compatibility. Do not assume interchangeability without verifying datasheet specifications against the original design requirements.
