Overview

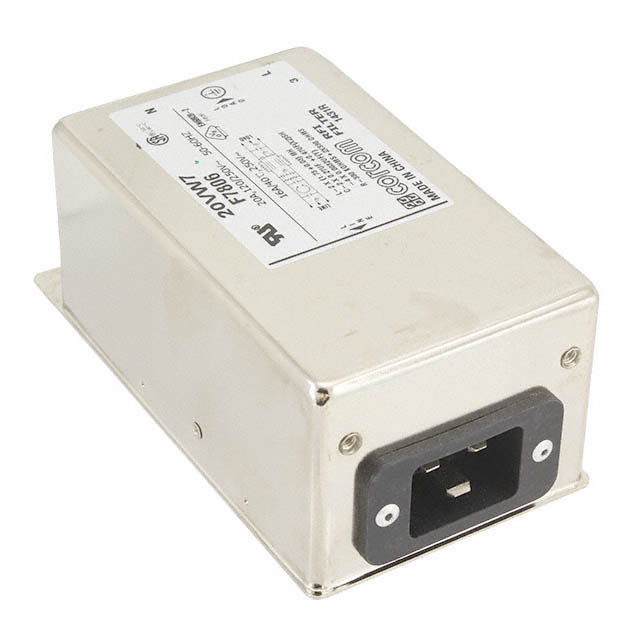

The TE Connectivity Corcom Filters model 6609044-6 is a single-phase EMC/EMI line filter designed for chassis mounting. It features a flanged installation style with quick connect terminals rated at 0.187 inches (4.7mm). The component has a current rating of 20 A and a voltage rating of 250 VAC, operating at frequencies of 50/60 Hz. It utilizes a two-stage configuration to suppress electromagnetic interference.

Feature Summary

• Two-stage filtering configuration for enhanced noise suppression
• Flanged chassis mount design for secure panel integration
• Quick connect terminal interface for simplified wiring

Applications

• Industrial equipment power conditioning
• Medical device power supplies
• General purpose electronic systems requiring EMI reduction

Procurement Notes

Verify the specific datasheet version and compliance documentation directly from TE Connectivity before procurement. Confirm that the flanged chassis mount dimensions and terminal spacing match the target enclosure requirements. Ensure the 20A current rating and 250VAC voltage rating are sufficient for the intended circuit application to prevent component failure.

Selection Notes

Select this component when a high-current single-phase filter is required for chassis-mounted applications. The two-stage design offers superior attenuation compared to single-stage alternatives. Ensure the installation environment supports the specified operating temperature range and that the quick connect terminals align with the available wiring harness specifications.

Part Context

This part belongs to the Corcom W series of single-phase filters from TE Connectivity. The series is characterized by robust construction suitable for demanding industrial environments. The 6609044-6 variant specifically addresses applications requiring higher current handling capabilities within a standard flanged form factor.

Replacement Considerations

FN2080A-20-06
