6609046-3

Overview

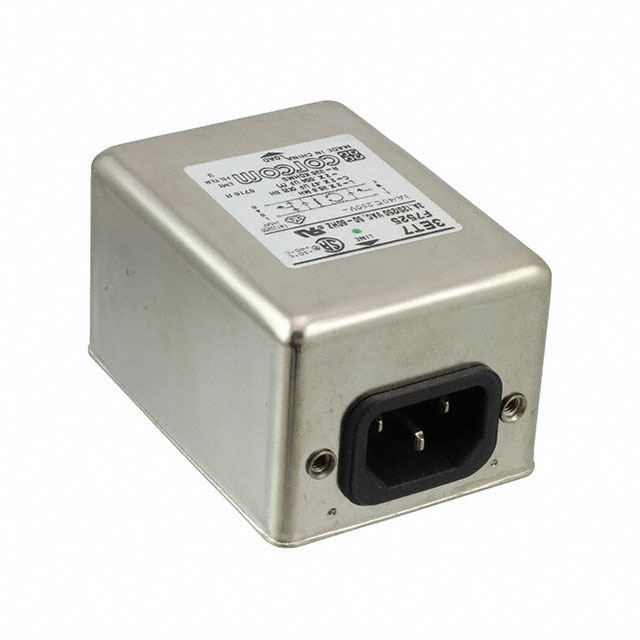

The TE Connectivity Corcom Filters model 6609046-3 is a single-phase EMC/EMI power line filter designed for chassis mounting. It operates at 50/60Hz with a rated AC voltage of 250V and a current capacity of 6A. The component features a single-stage configuration utilizing faston terminal connections. Its inductance value is specified as 18.5mH. The unit holds CSA, UR, and VDE certifications and functions within an operating temperature range of -10°C to 40°C.

Feature Summary

• Provides electromagnetic interference suppression through a single-stage filtering architecture
• Designed for secure mechanical attachment via chassis mounting installation method
• Facilitates electrical connection using standard faston terminal style interfaces

Applications

• General purpose electronic equipment requiring EMI/RFI noise reduction
• Industrial control systems needing compliant power line filtration
• Commercial machinery integrating single-phase AC power inputs

Procurement Notes

Verify the specific manufacturer part number against official TE Connectivity documentation to ensure exact specification matching. Confirm that the required certification marks align with regional regulatory standards for the intended deployment environment. Check for any recent product change notices regarding manufacturing location or material composition updates before finalizing procurement orders.

Selection Notes

Select this component when a single-stage filter meets the attenuation requirements for the target application. Ensure the system operates within the specified 250VAC and 6A limits. Verify that the chassis mounting footprint and faston terminal dimensions match the existing design constraints. Confirm compatibility with the 50/60Hz operating frequency.

Part Context

This component belongs to the TE Connectivity Corcom Filters lineup, which specializes in power line conditioning solutions. The 6609046-3 designation identifies a specific variant within the broader family of single-phase filters. It shares common interface characteristics with other models in the series while maintaining distinct electrical parameters for specific circuit protection needs.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data.
