6609046-6

Overview

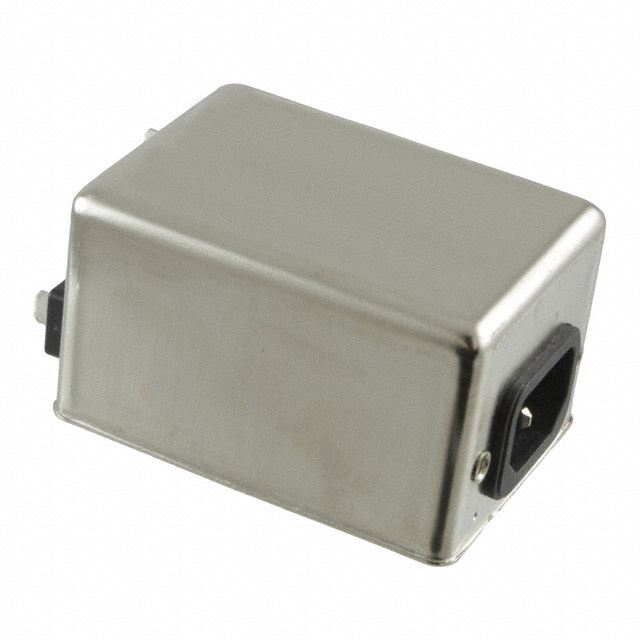

The TE Connectivity Corcom Filters model 6609046-6 is a single-phase EMI/RFI power line filter designed for chassis mounting. It operates at a rated AC voltage of 250V and supports a current capacity of 6A at 50/60Hz frequencies. The component utilizes a single-stage configuration with faston terminal connections for input and output. Key electrical specifications include an inductance value of 18.5mH. The unit is certified by CSA, UR, and VDE agencies and functions within a temperature range of -10°C to 40°C.

Feature Summary

• Provides electromagnetic interference suppression through a single-stage filtering architecture.
• Features faston terminal style connections for straightforward circuit integration.
• Designed for secure chassis mounting installation methods.

Applications

• General purpose electronic equipment requiring EMI/RFI noise reduction
• Industrial control systems operating on standard AC power lines
• Medical devices requiring certified power line filtration

Procurement Notes

Verify the specific part number against official TE Connectivity documentation to ensure compatibility with system requirements. Confirm that the faston terminal dimensions match existing connector interfaces. Check for updated certification marks such as UL or VDE if required by regional regulations. Ensure the chassis mounting hole pattern aligns with the mechanical drawing specifications provided in the datasheet.

Selection Notes

Select this component when a single-phase, 6A rated filter is required for chassis-mounted applications. Consider the 18.5mH inductance value for appropriate noise attenuation levels. Verify that the faston connection type suits the available wiring harnesses. Ensure the operating temperature range meets the environmental conditions of the final assembly.

Part Context

This component belongs to the Corcom T series of single-phase filters from TE Connectivity. The series offers various current ratings and configurations for general-purpose EMI/RFI suppression. The 6609046-6 variant specifically addresses needs for 6A capacity with faston terminals. It serves as a standardized solution for AC power line conditioning in commercial and industrial electronics.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult TE Connectivity technical support for direct equivalents or cross-reference options based on specific performance criteria.
