6609047-1

Overview

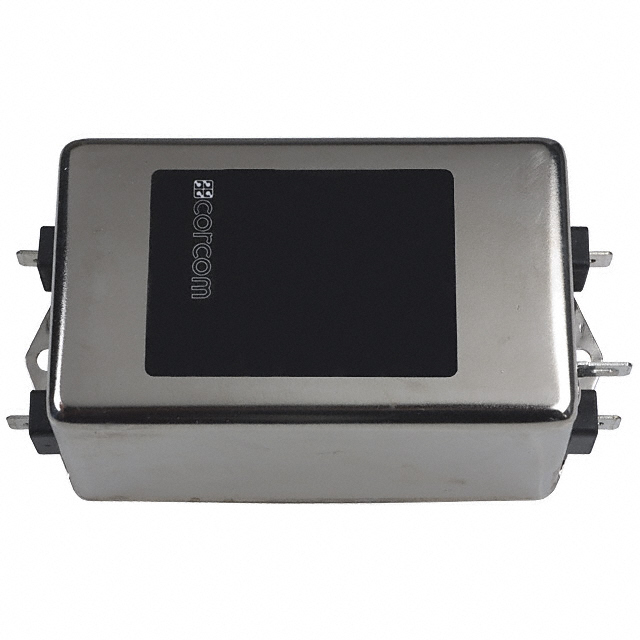

The TE Connectivity Corcom Filters 6609047-1 is a single-phase EMC/EMI line filter designed for switching power supplies. It features a chassis mount configuration with quick connect terminals. The component operates at 50/60Hz with a rated AC voltage of 250V and a current capacity of 10A. It provides superior common-mode and differential-mode noise suppression. The unit complies with UL, CSA, VDE, and SEV standards.

Feature Summary

• Provides superior common-mode and differential-mode noise suppression for switching power supplies
• Designed specifically for high-performance RFI power line filtering applications
• Features quick connect terminal style for efficient circuit integration

Applications

• Switching power supply input stages
• Industrial equipment requiring EMI suppression
• Electronic devices needing compliance with electromagnetic interference standards

Procurement Notes

Verify the specific part number against official TE Connectivity documentation to ensure compatibility with your system requirements. Confirm that the chassis mount style and quick connect terminals match your assembly design. Check for any recent product change notices or alternative sourcing options if standard availability is limited.

Selection Notes

Select this component when a single-phase filter with 10A capacity and 250VAC rating is required. Ensure the chassis mount form factor fits the enclosure constraints. Verify that the quick connect interface aligns with the PCB or wiring harness specifications. Consider the operating temperature range and certification requirements for the target market.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, known for providing reliable EMI/RFI suppression solutions. The MV and related series are widely used in industrial and commercial applications where electromagnetic compatibility is critical. The 6609047-1 variant offers a balance of performance and ease of installation through its chassis mount design.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
