6609047-2

Overview

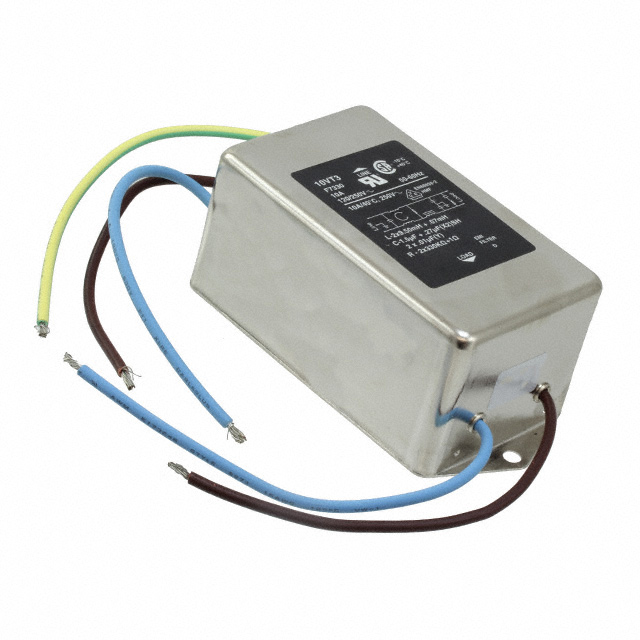

TE Connectivity Corcom Filters part number 6609047-2 is a single-phase power line filter designed for chassis or flange mounting. It features a rated current of 10 A and a maximum voltage of 250 V ac at 50/60 Hz frequencies. The component utilizes faston terminals for electrical connection and provides EMI/RFI suppression in general-purpose applications.

Feature Summary

• Provides electromagnetic interference and radio frequency interference suppression
• Designed for flange or chassis panel mounting configurations
• Utilizes faston blade terminals for circuit integration

Applications

• General purpose electronic equipment noise reduction
• Industrial control system power input filtering
• Medical device power entry modules

Procurement Notes

Verify the specific datasheet revision to confirm terminal dimensions and mounting hole patterns before integration. Ensure the operating environment temperature range aligns with the component specifications. Confirm that the 10 A rating meets the continuous load requirements of the target application circuit without derating issues.

Selection Notes

Select this model when a single-phase, 10 A rated filter with flange mounting is required. Compare leakage current limits against safety standards if used in medical or sensitive instrumentation. Verify that the faston terminal pitch matches the mating connector specifications on the printed circuit board or wiring harness.

Part Context

This component belongs to the TE Connectivity Corcom T series of power line filters. The series offers various current ratings and mounting styles for AC power entry applications. The 6609047-2 variant specifically addresses high-current needs with robust mechanical mounting options for industrial enclosures.

Replacement Considerations

Direct substitutes may include other Corcom models within the same series offering identical 10 A ratings and flange mounting. Cross-reference terminal types and physical dimensions to ensure compatibility with existing panel cutouts and wiring interfaces.
