Product Detailed Parameters
- Description：LINE FILTER 250VAC 15A CHASS MNT
- Series：T
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：15 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：5.07mH
Download product information
Overview

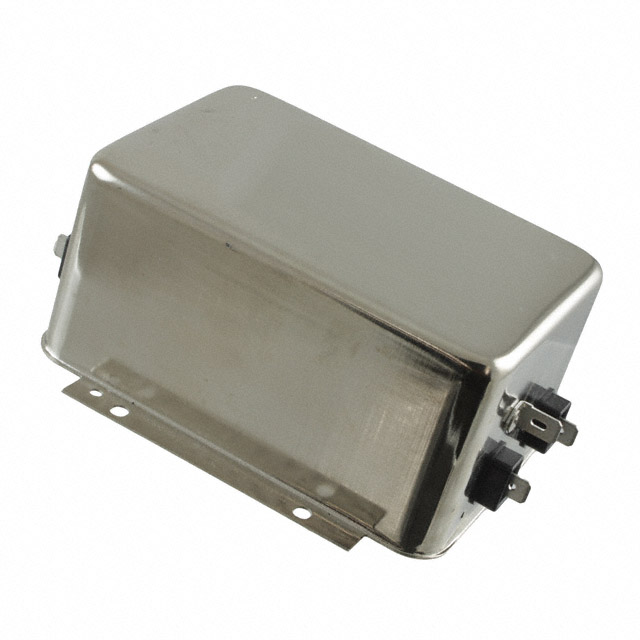

The TE Connectivity Corcom Filters model 6609047-3 is a single-phase EMC/RFI power line filter designed for chassis mounting. It operates at a voltage rating of 250 VAC and supports a current rating of 15 A within a frequency range of 50 to 60 Hz. The component features a two-stage filtering architecture with quick connect terminals, utilizing .250-inch FASTON inputs and outputs. It is RoHS compliant and functions within an operating temperature range of -10°C to 40°C.
Feature Summary
- Two-stage filtering architecture for enhanced noise suppression
- Quick connect termination using .250 inch FASTON terminals
- Chassis mounting design for secure installation
Applications
- Industrial equipment requiring EMI/RFI suppression
- Power distribution units
- Electronic enclosures needing single-phase line filtering
Procurement Notes
Verify the specific datasheet version for the 6609047-3 to confirm terminal dimensions and mounting hole specifications. Ensure the application environment stays within the -10°C to 40°C operating temperature range. Confirm that the 15 A current rating aligns with the circuit load requirements. Check for any specific RoHS compliance documentation if required by regional regulations.
Selection Notes
Select this component when a single-phase, chassis-mountable filter is required for 250 VAC systems. The 15 A rating suits moderate power applications. The quick-connect interface simplifies assembly compared to screw-terminal alternatives. Consider the physical size constraints of the chassis mount location before finalizing the selection.
Part Context
This part belongs to the Corcom T Series of single-phase filters from TE Connectivity. The series offers various current ratings and termination styles. The 6609047-3 specifically denotes the 15 A variant with FASTON connections. It is distinct from higher-current or different terminal configuration models within the same product family.
Replacement Considerations
Consult official TE Connectivity substitution guides for verified equivalents. Generic replacements may not match the two-stage filtering performance or terminal compatibility. Verify that any substitute maintains the 15 A rating and 250 VAC voltage specification.
