6609048-5

Overview

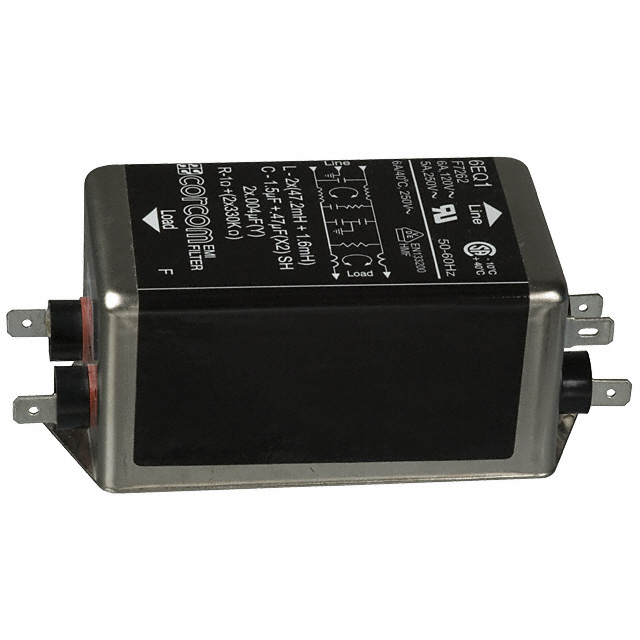

The TE Connectivity Corcom Filters model 6609048-5 is a single-phase EMC/EMI line filter belonging to the Q Series. It provides two-stage filtering for power lines operating at 50/60Hz with a rated voltage of 250VAC and a maximum current capacity of 6A. The component utilizes quick connect terminals for circuit attachment and is designed for chassis mounting applications.

Feature Summary

• Two-stage EMI/RFI filtering architecture
• Chassis mount installation design
• Quick connect terminal interface

Applications

• Industrial equipment power input stages
• Commercial machinery noise suppression
• General purpose AC power line filtering

Procurement Notes

Verify the exact electrical specifications against the official datasheet before integration, as commercial listings may vary in description accuracy. Confirm that the quick connect terminal style matches your assembly requirements. Ensure the chassis mounting dimensions are compatible with your enclosure design prior to procurement.

Selection Notes

Select this component when two-stage attenuation is required for 6A circuits at 250VAC. The Q Series designation indicates specific performance characteristics distinct from other Corcom series. Verify compatibility with existing quick connect wiring harnesses and ensure sufficient panel space for chassis mounting hardware.

Part Context

This part belongs to the Corcom Filters product line by TE Connectivity, specializing in electromagnetic interference suppression for AC power systems. The Q Series represents a specific tier of performance within their broader portfolio of power line filters designed for various industrial and commercial environments.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's selector charts for equivalent specifications if direct replacement is necessary.
