6609049-1

Overview

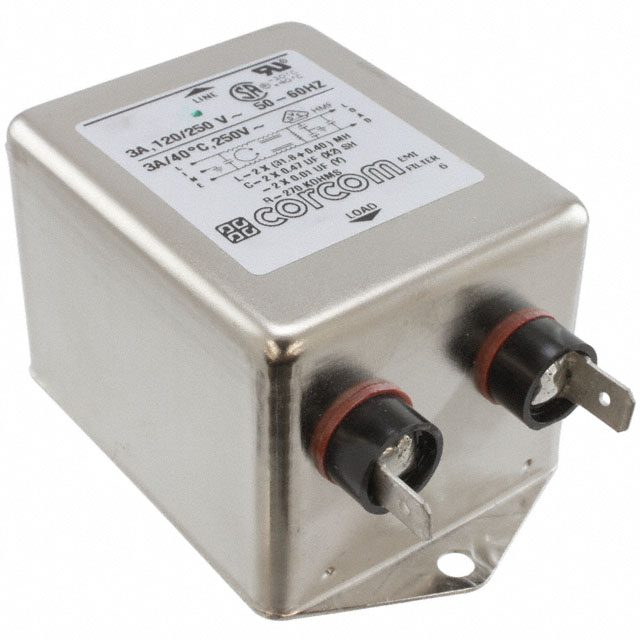

The TE Connectivity Corcom Filters model 6609049-1 is a single-phase EMC/EMI line filter designed for power line applications. It features a two-stage configuration with quick connect terminals rated at 3 A and 250 VAC at 50/60 Hz.

Feature Summary

• Provides EMI/RFI noise suppression through a two-stage filtering architecture
• Utilizes quick connect terminal style for circuit board integration

Applications

• General electronic equipment requiring power line filtering
• Industrial control systems
• Medical devices

Procurement Notes

Verify the exact datasheet specifications against the manufacturer's official documentation before procurement. Confirm that the two-stage configuration and quick connect termination meet your specific circuit requirements. Ensure compatibility with the intended voltage and current ratings of 250 VAC and 3 A respectively.

Selection Notes

Select this component when a single-phase, two-stage EMI/RFI filter is required for general applications. The quick connect termination suits PCB mounting needs. Verify that the 3 A rating and 250 VAC voltage are sufficient for the target system's power input specifications.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, which specializes in electromagnetic interference and radio frequency interference solutions for power lines. The product is categorized as a single-phase line filter suitable for commercial and industrial environments.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data.
