6609049-2

Overview

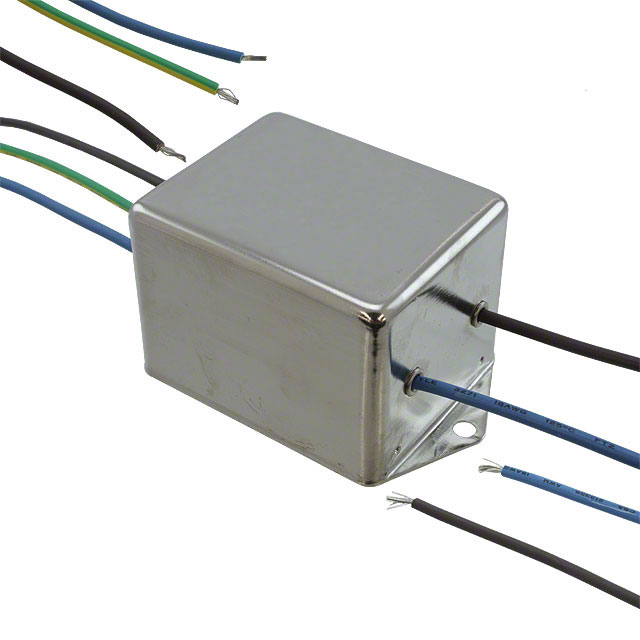

The TE Connectivity Corcom Filters model 6609049-2 is a single-phase EMC/EMI line filter designed for chassis mounting. It features a two-stage configuration with wire lead termination, rated for 3 A at 250 VAC and operating at 50/60 Hz frequencies.

Feature Summary

• Two-stage filtering architecture
• Single-phase EMI/RFI suppression
• Chassis mount installation style

Applications

• General purpose power line filtering
• Electronic equipment noise reduction

Procurement Notes

Verify the exact current rating and voltage specifications against the official datasheet before integration. Confirm that the wire lead termination style matches your system requirements. Ensure the chassis mount dimensions are compatible with your enclosure design to avoid mechanical interference during assembly.

Selection Notes

Select this component when a two-stage single-phase filter is required for general applications. The wire lead termination offers flexibility for internal wiring connections. Verify that the 3 A current rating meets the load requirements of the protected circuit.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, which specializes in electromagnetic interference suppression solutions. The product line includes various configurations for different mounting styles and current ratings, serving diverse industrial and commercial electronic needs.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
