Product Detailed Parameters
- Description：LINE FILTER 250VAC 10A CHASS MNT
- Series：G
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Three Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：10:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：7.178mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

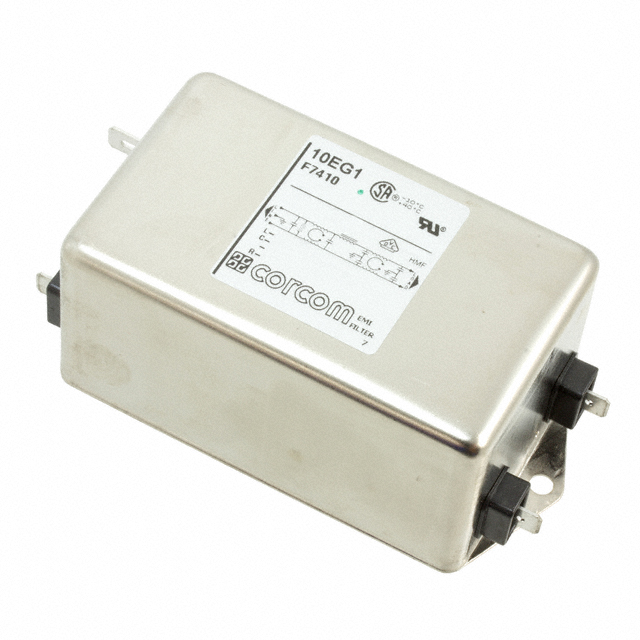

The TE Connectivity Corcom Filters 6609050-2 is a single-phase EMI/RFI power line filter designed for chassis mounting. It operates at 50 Hz and 60 Hz with a voltage rating of 250 VAC and a current rating of 10 A. The component features three-stage filtering configuration and utilizes screw termination type for secure installation. It has a maximum leakage current of 500 uA and belongs to the G series (6-10 Amp). The unit weighs approximately 576.645 g and holds UL, CSA, and VDE compliance certifications.
Feature Summary
- Provides three-stage attenuation for effective electromagnetic interference suppression
- Designed for general-purpose single-phase AC power line applications
- Supports secure chassis mounting using screw termination connections
Applications
- Industrial machinery power conditioning
- Medical equipment noise reduction
- General purpose electronic systems requiring EMI filtration
Procurement Notes
Verify part authenticity through authorized TE Connectivity channels or certified distributors. Confirm RoHS3 compliance status and specific certification marks (UL, CSA, VDE) required for your region. Check for obsolescence notices as some sources indicate end-of-life status. Ensure mechanical dimensions match chassis cutouts before ordering.
Selection Notes
Select this model when a 10 A single-phase filter with three-stage attenuation is required. Verify that the 250 VAC rating matches the system voltage. Ensure chassis mounting capability is available in the design. Compare leakage current specifications against safety standards if applicable. Confirm terminal type compatibility with wiring harnesses.
Part Context
This component belongs to the TE Connectivity Corcom Filters G series, which covers 6 to 10 Amp ratings. It is categorized under power line filters and EMI/RFI accessories. The product is manufactured by TE Connectivity / AMP. It falls within the power condition subcategory and is intended for general use in AC power lines.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult TE Connectivity technical support for direct replacements or cross-reference options based on specific electrical requirements.
