6609051-2

Overview

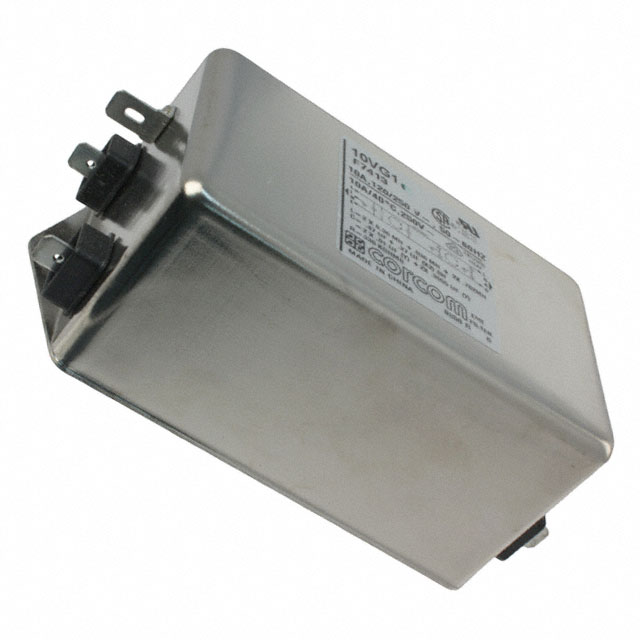

The TE Connectivity Corcom Filters 6609051-2 is a single-phase EMI/RFI line filter designed for chassis mounting. It features a G series configuration with a 10 A current rating and operates at AC voltages of 120V or 250V. The unit utilizes faston termination types, specifically .187" (4.7mm) input and .250" (6.3mm) output connections. Certified by CSA, UR, and VDE, it provides effective noise suppression for electronic equipment within standard industrial frequency ranges.

Feature Summary

• Provides single-phase EMI and RFI noise suppression
• Features dual voltage ratings for global compatibility
• Includes certified safety compliance markings

Applications

• Industrial control panels
• Medical equipment power supplies
• Commercial machinery

Procurement Notes

Verify the specific termination pin dimensions against your wiring harness to ensure compatibility with the .187" input and .250" output specifications. Confirm that the chassis mounting requirements align with the physical footprint of the G series filter. Ensure the operating environment remains within the specified temperature range to maintain performance integrity and certification validity.

Selection Notes

Select this component when a 10 A capacity is required for single-phase applications. The faston termination style suits automated assembly processes. Verify that the chassis opening dimensions accommodate the filter housing. Consider the leakage current characteristics if strict isolation standards apply to the final system design.

Part Context

This part belongs to the Corcom G series, which offers robust EMI filtering solutions. The manufacturer specializes in power entry modules and filters. This specific model integrates filtering capabilities directly into the power entry interface, simplifying board layout and reducing component count in high-current applications.

Replacement Considerations

FN9246-3-06 is listed as a similar substitute part number from TE Connectivity Schaffner.
