6609053-5

$35.73

Description：LINE FILTER 250VAC 6A CHASS MNT
Series：HT
Mfr：TE Connectivity Corcom Filters
Package：Bulk

SKU:bb6afb0c300d Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 6A CHASS MNT
Series：HT
Mfr：TE Connectivity Corcom Filters
Package：Bulk
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：6:00 AM
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UR, VDE
Operating Temperature：-10°C ~ 40°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：18.5mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

6609053-5

Overview

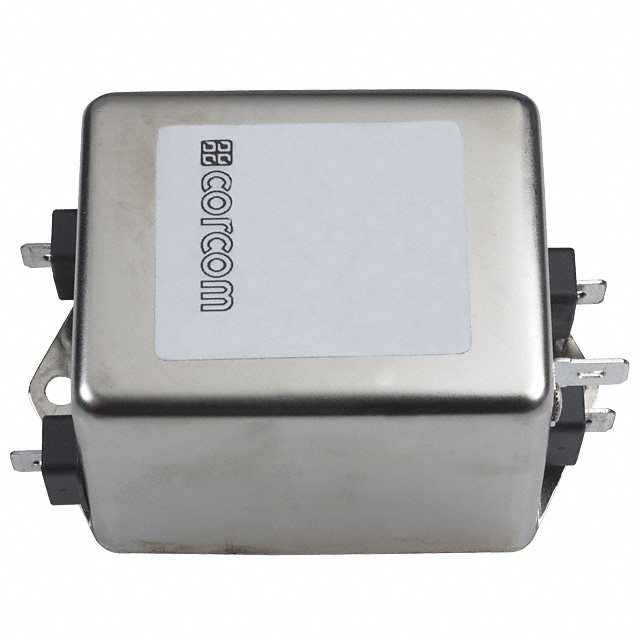

The TE Connectivity Corcom Filters model 6609053-5 is a single-phase EMC/EMI line filter designed for chassis or panel mounting. It operates at a rated AC voltage of 250V and supports a continuous current of 6A within the 50/60Hz frequency range. The unit features a single-stage configuration with quick-connect terminals sized at 0.187 inches (4.7mm). Key electrical specifications include an inductance value of 18.5mH. The component is certified by CSA, UR, and VDE agencies and functions reliably within an operating temperature range of -10°C to 40°C.

Feature Summary

Single-stage EMI/RFI filtering architecture
Quick-connect terminal interface
Chassis or panel installation capability

Applications

Industrial equipment power conditioning
Medical device power supplies
General-purpose electronic systems

Procurement Notes

Verify the specific terminal type and physical dimensions against the official datasheet before integration. Confirm that the single-stage attenuation meets the electromagnetic compatibility requirements of the target application. Ensure the mounting hardware accommodates the specified chassis or panel thickness constraints.

Selection Notes

Select this component when a single-stage filter solution is sufficient for noise reduction in 250VAC circuits carrying up to 6A. The quick-connect termination style facilitates rapid assembly without soldering. Consider the thermal operating limits and certification requirements to ensure compliance with regional safety standards for the intended deployment environment.

Part Context

This part belongs to the Corcom Filters series manufactured by TE Connectivity. It is categorized as a power line filter module designed for general-purpose applications. The product is currently listed as active in the manufacturer's portfolio, indicating ongoing production support and availability for new design implementations.
