Product Detailed Parameters
- Description：LINE FILTER 250VAC 3A CHASS MNT
- Series：HZ
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Bulk,Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：3:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

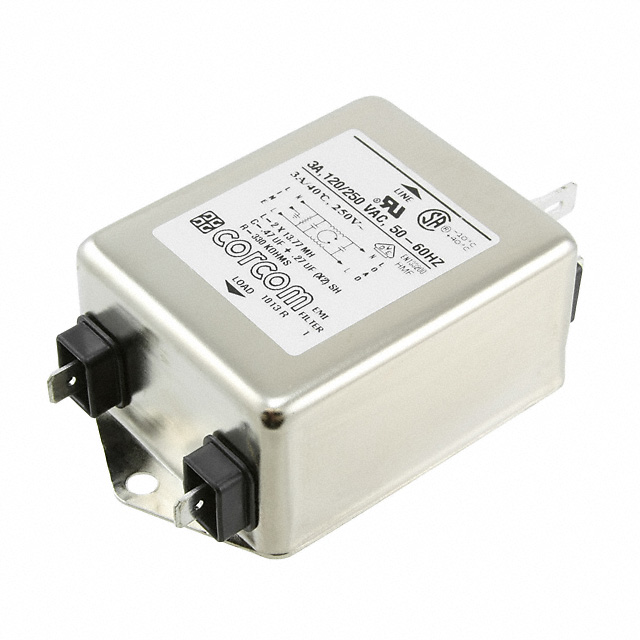

The 6609055-1 is a single-phase EMC/EMI line filter from the TE Connectivity Corcom Filters series. It features a current rating of 3 A and operates at voltages up to 250 VAC with a frequency range of 50/60 Hz. The unit utilizes a quick connect termination style for circuit integration. Designed for chassis mounting, this component provides general-purpose noise reduction in AC power lines.
Feature Summary
- Single-stage EMI/RFI filtering configuration
- Quick connect terminal interface
- Chassis mount installation style
Applications
- General purpose AC power line noise suppression
- Electronic equipment requiring EMI mitigation
- Industrial control systems
Procurement Notes
Verify the exact part number against official TE Connectivity documentation before procurement. Confirm that the quick connect terminals match your wiring harness specifications. Ensure the chassis mounting dimensions align with your enclosure design. Check for any recent product change notices or lifecycle status updates directly from the manufacturer.
Selection Notes
Select this component when a single-stage filter is sufficient for your noise attenuation requirements. Ensure the 3 A current rating meets your system's maximum load. Verify that the quick connect termination type is compatible with your assembly process. Consider the chassis mounting requirement during the mechanical design phase.
Part Context
This component belongs to the Corcom Filters family, which specializes in electromagnetic interference solutions. The 6609055-1 represents a specific variant within the HZ series, tailored for applications requiring moderate current handling and standard voltage ratings. It serves as a critical element in maintaining signal integrity in sensitive electronic environments.
Replacement Considerations
Consult official TE Connectivity substitution guides for verified alternatives. Cross-reference technical specifications such as current rating, voltage, and termination style when evaluating potential substitutes.
