Overview

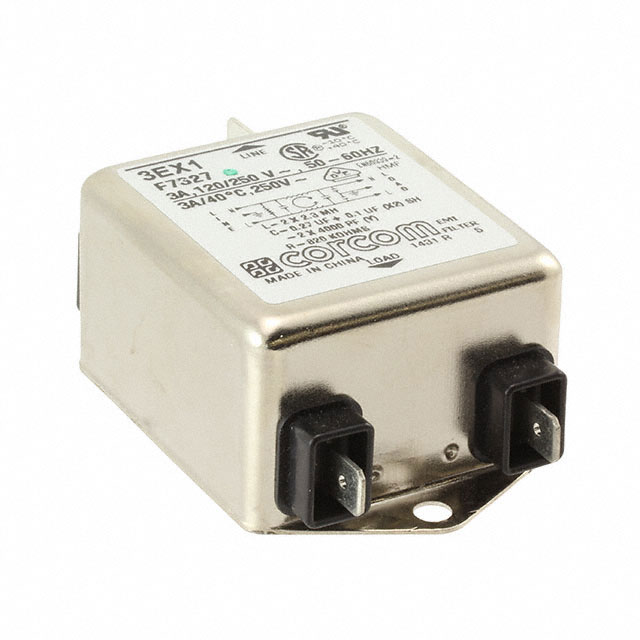

The TE Connectivity Corcom Filters 6609059-1 is a single-phase EMC/EMI line filter designed for chassis mounting. It operates at a rated voltage of 250VAC and supports a current rating of 3A within a frequency range of 50/60Hz. The component utilizes quick connect terminals for electrical interfacing and features a single-stage filtering configuration. This module is part of the X series, intended for general-purpose power line noise suppression in electronic equipment requiring compact filtration solutions.

Feature Summary

• Provides single-stage EMI/RFI noise suppression for AC power lines
• Designed for secure chassis mounting applications
• Utilizes quick connect terminal style for straightforward wiring integration

Applications

• General-purpose electronic equipment power input stages
• Industrial control systems requiring EMI mitigation
• Medical device power supplies adhering to safety standards

Procurement Notes

Verify the specific datasheet version for the 6609059-1 model to confirm exact attenuation curves and mechanical dimensions prior to integration. Ensure that the chassis mounting environment accommodates the thermal requirements specified in the official documentation. Cross-reference certification marks such as UL or VDE against local regulatory compliance needs for the target market deployment.

Selection Notes

Select this component when a single-stage filter solution is sufficient for the required noise reduction levels. Confirm that the 3A current rating aligns with the maximum load current of the application circuit. Verify that the quick connect terminal spacing matches the available PCB or wire harness connectors. Consider the physical constraints of chassis mounting versus panel mount alternatives if space is limited.

Part Context

This component belongs to the TE Connectivity Corcom Filters product line, specifically the X series of power line filters. These modules are engineered to meet international safety and electromagnetic compatibility standards. The 6609059-1 variant represents a standard configuration within this family, focusing on reliable performance for general industrial and commercial applications without complex multi-stage filtering requirements.

Replacement Considerations

Publicly confirmed substitute part numbers for the 6609059-1 were not identified in the provided source material. Consult the manufacturer's official selector charts or contact technical support directly for verified equivalent components that match the electrical and mechanical specifications.
