6609059-2

Overview

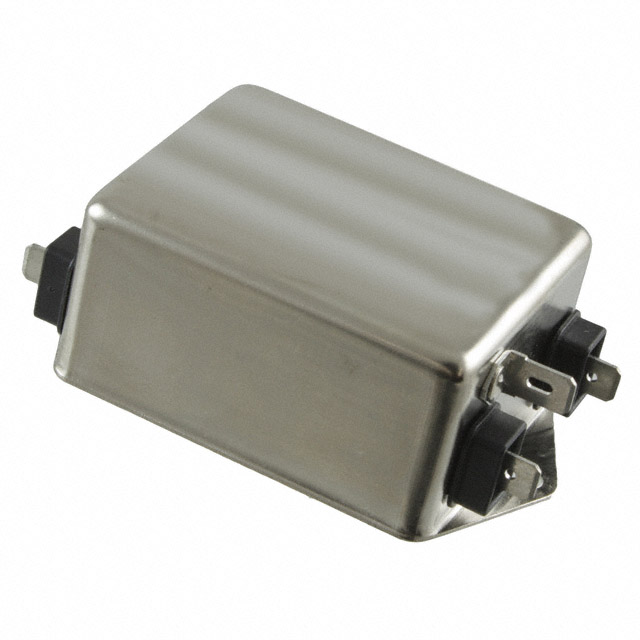

The TE Connectivity Corcom Filters 6609059-2 is a single-phase power line filter designed for EMI/RFI suppression. It features a flange mount installation style and utilizes faston termination types. The component operates at frequencies of 50 Hz and 60 Hz with a rated voltage of 250 VAC and a current rating of 3 A. Key electrical specifications include a leakage current of 500 uA. The unit belongs to the Z series and holds certifications from UL, CSA, and VDE.

Feature Summary

• Provides electromagnetic interference and radio frequency interference suppression for AC power lines
• Designed for secure mounting via a flange installation configuration
• Facilitates circuit connection through faston terminal interfaces

Applications

• General purpose power line filtering applications
• Equipment requiring compliance with UL, CSA, and VDE safety standards
• Systems operating on 50 Hz or 60 Hz AC power supplies

Procurement Notes

Verify part authenticity by checking manufacturer markings against official documentation. Confirm that the specific variant matches the required 3 A current rating and 250 VAC voltage specification. Ensure compatibility with existing faston connector sizes and flange mounting dimensions before integration into final assemblies.

Selection Notes

Select this component when a single-stage filter solution is required for low-current AC circuits. Consider the 500 uA leakage current limit for sensitive equipment constraints. Verify that the flange mount style aligns with available chassis space and that faston terminals match the wiring harness specifications.

Part Context

This component is part of the Corcom Z series power line filters manufactured by TE Connectivity. It serves as an alternative to other single-phase filters in the lineup, specifically tailored for applications needing moderate attenuation with standard safety certifications. The part number 6609059-2 corresponds to the alias 3EZ1 within the manufacturer's catalog structure.

Replacement Considerations

No direct public substitute part numbers are confirmed for this discontinued item.
