6609061-4

Overview

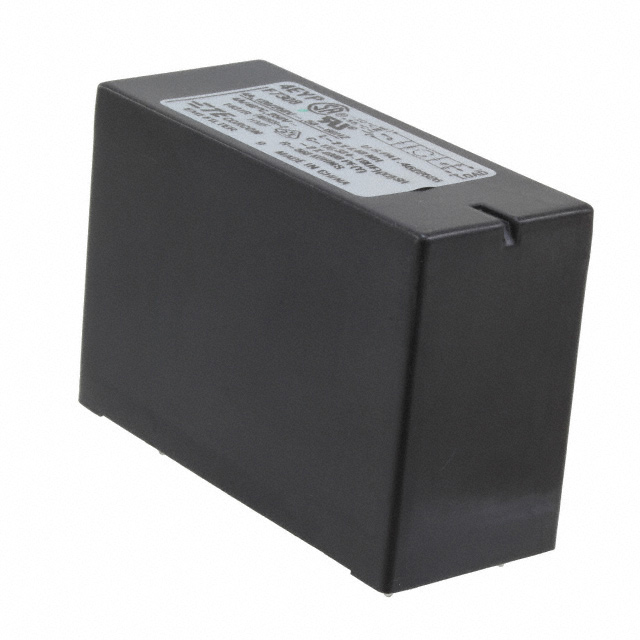

The TE Connectivity Corcom Filters model 6609061-4 is a single-phase EMI/RFI power line filter designed for printed circuit board mounting. It features a 4A current rating and operates at a maximum voltage of 250VAC. The component utilizes PCB pins with a .065-inch diagonal input configuration for secure electrical connection. This filter is part of the Corcom Y series, intended to mitigate electromagnetic interference in electronic equipment requiring reliable power entry filtering.

Feature Summary

• Provides single-phase EMI/RFI noise suppression for AC power lines
• Designed for direct printed circuit board (PCB) mounting via pin terminals
• Constructed within the Corcom Y series product family

Applications

• Electronic equipment requiring AC power line filtering
• Industrial control systems
• Medical devices
• Commercial office automation equipment

Procurement Notes

Verify the specific datasheet version for the 6609061-4 to confirm current manufacturing status, as availability data may vary. Ensure that the PCB layout accommodates the specified .065-inch diagonal pin spacing. Cross-reference the official TE Connectivity documentation for precise mechanical dimensions and thermal ratings before finalizing integration into the design.

Selection Notes

Select this component when a single-phase, PCB-mountable EMI filter with a 4A rating is required. The Corcom Y series offers a compact solution for applications where space is limited but effective noise attenuation is necessary. Confirm that the operating voltage does not exceed 250VAC and that the load current remains within the 4A limit for optimal performance and safety compliance.

Part Context

This component belongs to the TE Connectivity Corcom Filters lineup, specifically the Y series of single-phase filters. These modules are engineered for general-purpose electromagnetic interference mitigation in AC power circuits. The brand is recognized for providing certified power entry solutions that meet international safety standards for commercial and industrial applications.

Replacement Considerations

Publicly confirmed substitute part numbers for 6609061-4 were not identified in the provided source material. Consult TE Connectivity technical support or authorized distributors for verified alternatives if this specific model is unavailable.
