Product Detailed Parameters
- Description：LINE FILTER 250VAC 3A TH
- Series：EBP
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：3:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Through Hole
- Termination Style：PC Pins
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

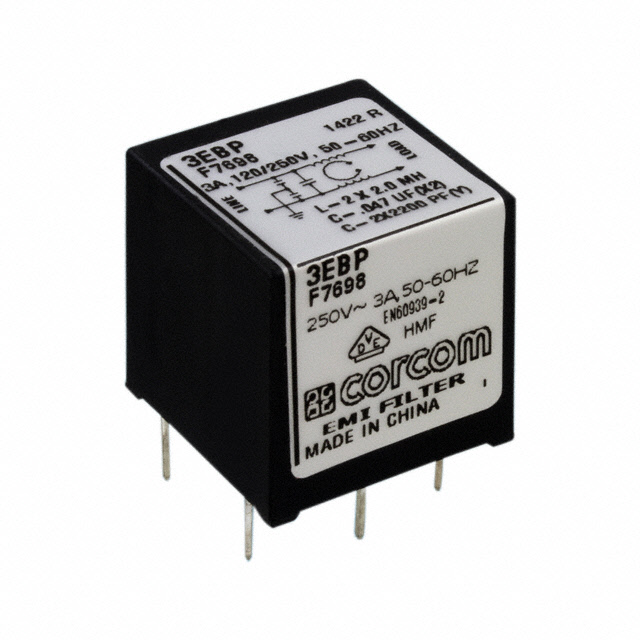

The TE Connectivity Corcom Filters model 6609063-2 is a single-phase EMC/EMI line filter designed for commercial applications. It features a rated current of 3 A and a voltage rating of 250 V AC at 50/60 Hz. The unit utilizes a single-stage configuration with PC pin termination for printed circuit board mounting. Certified by CSA, UR, and VDE agencies, this component provides essential noise suppression for sensitive electronic equipment operating within standard power frequencies.
Feature Summary
- Single-stage EMI/RFI filtering architecture
- PC pin termination for PCB integration
- Commercial-grade noise suppression
Applications
- General purpose electronic equipment
- Commercial machinery
- Industrial control systems
Procurement Notes
Verify the exact part number against official TE Connectivity documentation to confirm specifications. Ensure compatibility with target PCB layouts regarding PC pin spacing and mounting requirements. Cross-reference certification marks such as UL, CSA, and VDE with local regulatory standards before finalizing procurement decisions.
Selection Notes
Select this component when a single-stage filter solution is required for low-current applications up to 3 A. The PC pin termination style dictates compatibility with specific printed circuit board designs. Confirm that the single-stage attenuation meets the electromagnetic interference reduction needs of the target system without requiring more complex multi-stage architectures.
Part Context
This component belongs to the Corcom filters series manufactured by TE Connectivity. It serves as a specialized power line filter within the broader category of electromagnetic interference suppression devices. The product is distinct from chassis-mounted or feedthrough variants due to its specific PC pin termination and single-stage design parameters.
Replacement Considerations
The part number 3EBP M0 is identified as an alternative designation for this component. Verify electrical characteristics and physical dimensions against official datasheets before substituting.
