6609064-1

Overview

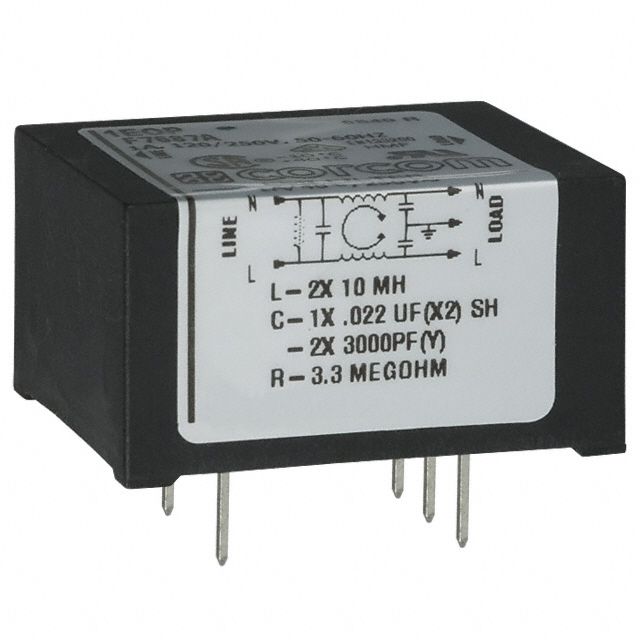

The TE Connectivity Corcom Filters model 6609064-1 is a single-phase EMC/EMI power line filter designed for through-hole mounting. It operates at a rated AC voltage of 250V and supports a continuous current of 1A within the 50/60Hz frequency range. The component features a single-stage configuration with PC pin termination. Key electrical parameters include an inductance of 10mH, capacitance values of 3nF and 20nF, and a leakage current of 0.38mA. It functions reliably within a temperature range of -10°C to +40°C.

Feature Summary

• Provides single-stage EMI/RFI suppression for single-phase AC power lines
• Utilizes printed circuit board pins for secure through-hole integration
• Complies with international safety standards including CSA, UL, and VDE certifications

Applications

• Single-phase electronic equipment requiring EMI filtering
• Industrial control systems operating on standard AC mains
• Medical devices adhering to strict leakage current limits

Procurement Notes

Verify the specific capacitance variant required, as datasheets indicate values of 3nF and 20nF. Confirm that the 1A current rating and 250VAC voltage align with the target circuit design. Ensure the PCB layout accommodates the specified through-hole pin spacing and physical dimensions of 36.6mm by 31.5mm by 19.9mm before ordering.

Selection Notes

Select this component when a low-current, single-stage solution is sufficient for noise reduction. The 0.38mA leakage current makes it suitable for sensitive applications where higher leakage types are prohibited. Compare against multi-stage filters if attenuation requirements exceed single-stage capabilities. Verify compatibility with the available 3nF or 20nF capacitor options based on the specific filtering needs.

Part Context

This part belongs to the TE Connectivity Corcom EOP series, which focuses on compact, through-hole power line filters. The series is engineered for general-purpose EMI suppression in space-constrained environments. It complements other Corcom offerings by providing a cost-effective, certified solution for lower-amperage applications compared to chassis-mount alternatives.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation.
