6609064-3

Overview

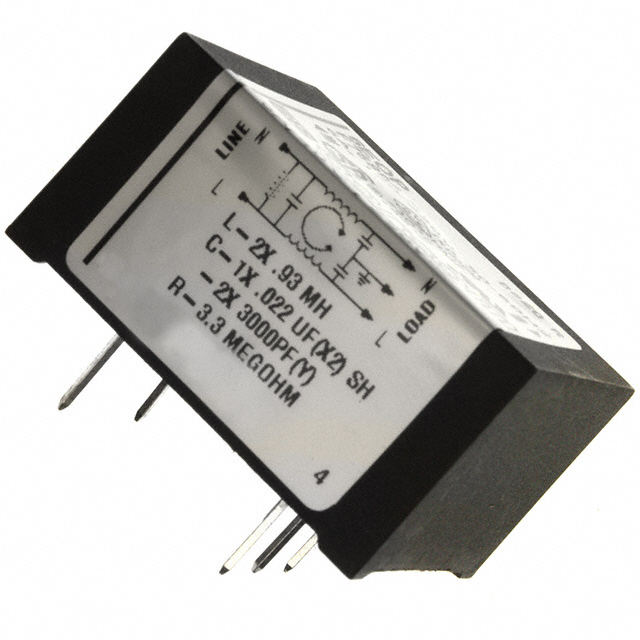

The TE Connectivity Corcom Filters model 6609064-3 is a single-phase EMI/RFI power line filter designed for general-purpose applications. It operates at a rated voltage of 250 VAC and supports a maximum current of 6 A at frequencies of 50 Hz and 60 Hz. The component utilizes through-hole installation with solder pin termination. Key electrical specifications include a leakage current of 380 uA. It belongs to the EOP series, which covers ratings from 1 to 10 Amps. The unit weighs approximately 31.190 g and holds UL, CSA, and VDE compliance certifications.

Feature Summary

• Provides electromagnetic interference and radio frequency interference suppression for single-phase AC power lines
• Features solder pin termination for secure through-hole mounting on printed circuit boards
• Constructed within the EOP series design framework for reliable power conditioning

Applications

• General-purpose power supply units requiring EMI filtering
• Battery charger circuits needing noise reduction
• Portable electronic equipment power inputs

Procurement Notes

Verify the specific datasheet version before ordering, as manufacturing locations or internal revisions may change without altering the part number. Confirm that the solder pin dimensions match your PCB footprint requirements. Ensure the 6 A current rating and 250 VAC voltage limit align with your system's operational parameters. Check for any RoHS or REACH compliance updates relevant to your region's regulations prior to final procurement approval.

Selection Notes

Select this component when a single-stage, single-phase filter is required for low-to-medium current applications up to 6 A. The through-hole solder pin interface is suitable for standard PCB assembly processes. Consider the EOP series if space constraints allow for chassis or panel mounting alternatives in higher current scenarios. Verify that the 380 uA leakage current meets safety standards for the intended end-use device.

Part Context

This filter is part of the TE Connectivity Corcom EOP series, which offers various single-phase filtering solutions ranging from 1 to 10 Amps. The EOP series is characterized by its robust construction and compliance with major international safety standards. This specific model represents a mid-range current option within the lineup, balancing performance with physical size for general industrial and commercial electronics.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult TE Connectivity technical support for direct equivalents or cross-reference options based on specific electrical and mechanical constraints.
