Product Detailed Parameters
- Description：LINE FILTER 250VAC 6A TH
- Series：EDP
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：6:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Through Hole
- Termination Style：PC Pins
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

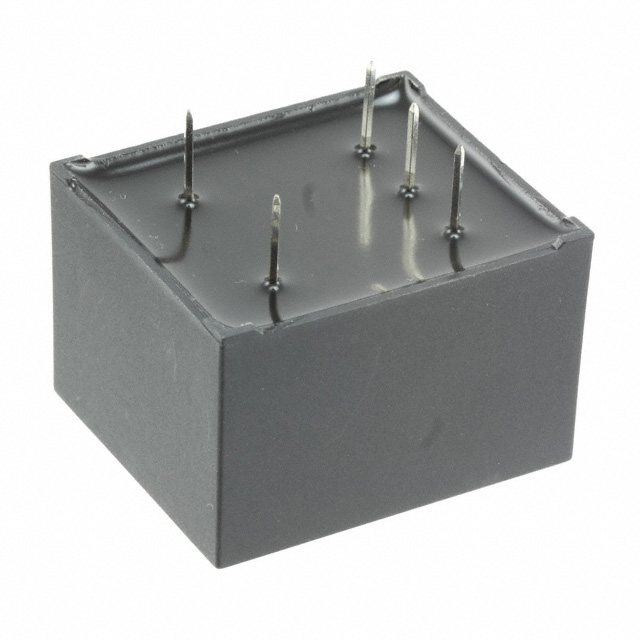

The TE Connectivity Corcom 6609065-3 is a single-phase EMC/EMI power line filter designed for printed circuit board mounting. It operates at 250 VAC with a rated current of 6 A and supports frequencies of 50 Hz and 60 Hz. The component utilizes through-hole technology with PC pins for input and .025-inch square output pins. It provides single-stage filtering to suppress electromagnetic interference in general-purpose applications.
Feature Summary
- PC board mountable design for direct integration into electronic assemblies
- Enhanced differential mode performance for effective noise suppression
- Single-phase configuration suitable for standard AC power lines
Applications
- General-purpose electronic equipment requiring EMI/RFI suppression
- Power supply input stages for consumer electronics
- Industrial control systems needing single-phase line filtering
Procurement Notes
Verify the specific pin configuration and mechanical dimensions against the official datasheet before integration. Confirm compliance requirements such as UL, CSA, or VDE certifications match the target market regulations. Ensure the operating voltage and current ratings align with the system's electrical parameters to prevent component failure.
Selection Notes
Select this component when a single-stage, PCB-mountable solution is required for single-phase AC lines. Consider the 6 A current rating and 250 VAC voltage limit to ensure adequate headroom for the application. Evaluate the need for enhanced differential mode performance over common mode filtering if specific noise profiles are present.
Part Context
This part belongs to the TE Connectivity Corcom EDP series of single-phase filters. These components are engineered for general-purpose RFI filtering on printed circuit boards. The series offers various current ratings and terminal configurations to accommodate different power handling requirements in compact spaces.
Replacement Considerations
Consult official substitution lists from TE Connectivity for verified alternatives. Ensure any replacement matches the 6 A rating, 250 VAC specification, and PC pin footprint. Generic equivalents may not provide identical differential mode performance or certification approvals.
