6609066-2

Overview

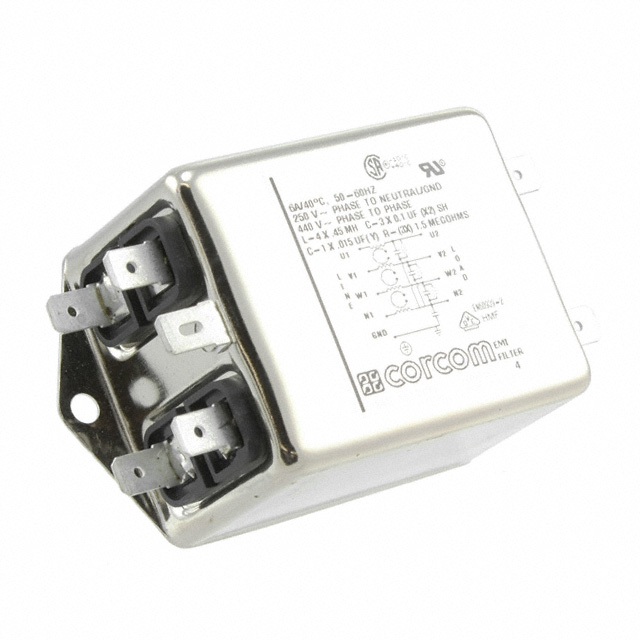

The TE Connectivity Corcom Filters 6609066-2 is a three-phase Wye EMC/EMI line filter designed for AC power systems. It operates at 50/60Hz with a rated current of 6A and voltage up to 440VAC. The unit features a single-stage configuration with quick connect terminals, chassis mount installation, and low leakage current characteristics.

Feature Summary

• Three-phase Wye topology for noise reduction
• Single-stage filtering configuration
• Quick connect terminal interface
• Low leakage current design

Applications

• Three-phase four-wire WYE applications
• General purpose power conditioning
• AC power system noise suppression

Procurement Notes

Verify the specific electrical ratings against your system requirements, particularly the 6A current and 440VAC voltage limits. Confirm that the single-stage performance meets your EMI/EMI suppression needs. Ensure the chassis mount style and quick connect terminals are compatible with your assembly process.

Selection Notes

Select this component when a three-phase Wye configuration is required for general-purpose power line filtering. It is suitable for applications needing single-stage attenuation with quick connect accessibility. Consider the chassis mount form factor and low leakage current specifications for sensitive equipment integration.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, specifically designed for electromagnetic interference suppression in industrial and commercial power distribution networks. It addresses common mode and differential mode noise in three-phase systems.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
