6609066-3

Description：LINE FILTER 10A CHASSIS MOUNT
Series：AYO
Mfr：TE Connectivity Corcom Filters
Package：Bulk

SKU:9186ea7c0cf5 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 10A CHASSIS MOUNT
Series：AYO
Mfr：TE Connectivity Corcom Filters
Package：Bulk
Filter Type：Three Phase (Wye)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：10:00 AM
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UR, VDE
Operating Temperature：-10°C ~ 40°C
Mounting Type：Chassis Mount
Termination Style：Quick Connect
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：250 V
Voltage - Rated AC (Phase to Phase)：440 V

Download product information

6609066-3

Overview

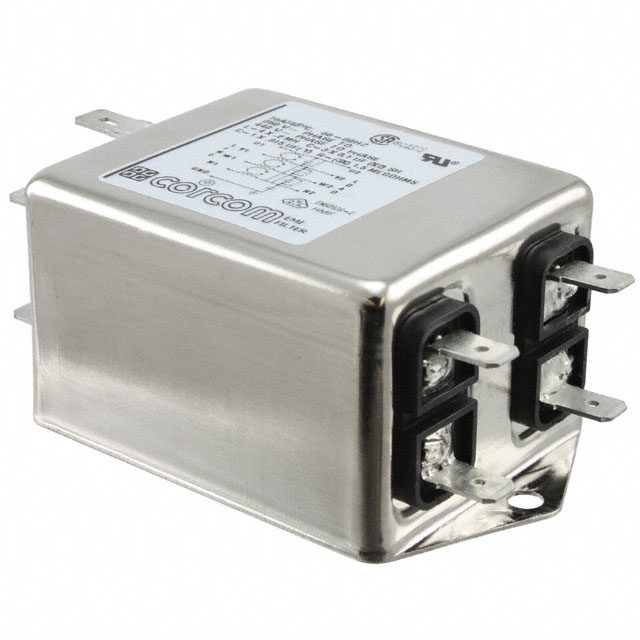

The TE Connectivity Corcom Filters model 6609066-3 is a three-phase RFI filter designed for WYE applications. It supports a maximum current of 10 A and operates at 250 V AC, 50 Hz, or 60 Hz. The unit features flange mounting with spade terminals. Electrical parameters include a capacitance value of 100 nF, an inductance value of 1 mH, and a leakage current of 3 mA. Operating temperatures range from -10°C to 40°C. Physical dimensions are 85.6 mm in length, 52.5 mm in height, and 38.7 mm in depth. Certifications include CSA 22.2 No. 0/0.4/8, UL 1283, and VDE 0565-3.

Feature Summary

Space-saving design optimized for three-phase four-wire WYE configurations
Low leakage current characteristics suitable for sensitive equipment
Easy-to-connect spade terminal interface

Applications

Three-phase power line filtering
EMC/EMI suppression in industrial machinery
Power supply input protection

Procurement Notes

Verify the specific part number suffix against official TE Connectivity documentation to ensure correct configuration. Confirm that the required certifications align with local regulatory standards for the intended application environment. Cross-reference datasheet specifications for voltage and current ratings prior to integration.

Selection Notes

Select this component for three-phase systems requiring single-stage filtering with low leakage current. Ensure the installation space accommodates the specified physical dimensions. Verify compatibility with the 10 A current rating and 250 V AC operating voltage. Confirm that spade terminals match the system's wiring requirements.

Part Context

This component belongs to the Corcom AYO series, which provides three-phase filtering solutions. The series emphasizes compact design and ease of connection for industrial applications. It addresses electromagnetic interference in power distribution networks while maintaining compliance with major international safety standards.
