Product Detailed Parameters
- Description：LINE FILTER 25A CHASSIS MOUNT
- Series：AYC
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：25 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：UR
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：277 V
- Voltage - Rated AC (Phase to Phase)：480 V
Download product information
Overview

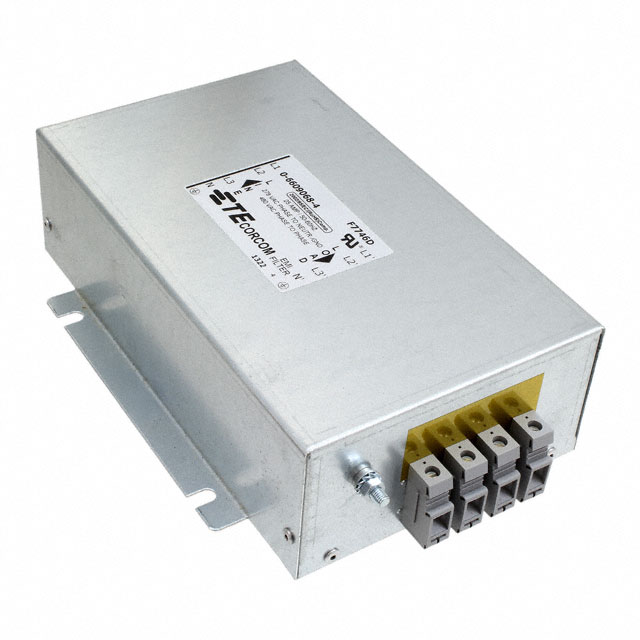

The TE Connectivity Corcom Filters model 6609068-4 is a three-phase (Wye) EMC/EMI line filter designed for industrial power conditioning. It supports a rated current of 25 A at 50/60 Hz frequencies and utilizes a single-stage filtering architecture to mitigate electromagnetic interference. The component employs terminal block connections for secure wiring integration. Certified by UL, this unit ensures compliance with safety standards for AC power entry applications requiring robust noise suppression in three-phase systems.
Feature Summary
- Provides EMI/RFI noise suppression for three-phase Wye configurations
- Utilizes a single-stage filtering topology for efficient signal integrity
- Features terminal block termination for reliable electrical connection
Applications
- Industrial machinery power input stages
- Three-phase motor drive systems
- Commercial HVAC control units
Procurement Notes
Verify the specific voltage rating and physical dimensions against the official datasheet before integration. Confirm that the terminal block type matches your wiring harness requirements. Ensure the three-phase Wye configuration aligns with your system's power distribution architecture to prevent operational mismatches or installation errors.
Selection Notes
Select this component when a single-stage solution for 25 A three-phase applications is required. Compare its physical footprint and terminal style against alternative Corcom series filters. Validate that the EMI attenuation characteristics meet the specific regulatory emission limits for your target market and equipment class.
Part Context
This part belongs to the TE Connectivity Corcom Filters family, specializing in power line conditioning. It complements other models like 6609068-1 and 6609068-7 within the same product line. The series offers various current ratings and mounting options for diverse industrial power entry needs.
Replacement Considerations
Consult the official Corcom selector charts for direct equivalents. Verify compatibility with existing panel cutouts and terminal spacing. Cross-reference technical specifications to ensure identical phase configuration and current handling capabilities.
