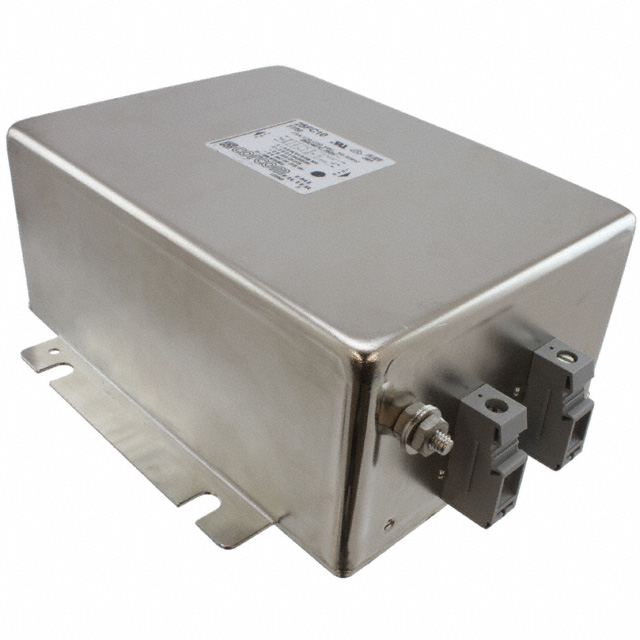

6609069-4

$149.47

Description：LINE FILTER 250VAC 25A CHASS MNT
Series：FC
Mfr：TE Connectivity Corcom Filters
Package：Bulk

SKU:2aef04c56c59 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 25A CHASS MNT
Series：FC
Mfr：TE Connectivity Corcom Filters
Package：Bulk
Filter Type：Single Phase
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：25 A
Frequency - Operating：50/60Hz
Applications：Inverters, Power Drive Systems
Approval Agency：UR
Operating Temperature：-10°C ~ 40°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：4.9mH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

6609069-4

Overview

The TE Connectivity Corcom Filters 6609069-4 is a power line filter designed for chassis mounting. It features a rated current of 25 A and a voltage rating of 250 VAC. The component utilizes Phoenix terminal connections for secure electrical interfacing.

Feature Summary

Provides electromagnetic interference suppression for AC power lines
Designed for robust chassis mounting applications
Utilizes Phoenix terminal connection style

Applications

Industrial machinery power conditioning
General purpose power line filtering
Equipment requiring high-current EMI suppression

Procurement Notes

Verify the specific datasheet version to confirm detailed attenuation curves and physical dimensions. Ensure the Phoenix terminal configuration matches the system wiring requirements. Confirm compliance certifications such as UL or CSA are valid for the target market. Check for any recent product change notices that may affect specifications.

Selection Notes

Select this component when a 25 A current capacity is required for single-phase AC power filtering. The chassis mount style is suitable for integration into larger equipment enclosures. Verify that the 250 VAC rating aligns with the local mains supply voltage. Consider the physical space available for chassis installation.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters. The 6609069-4 model is specifically categorized under power line filters with a 25 A rating. It is distinct from lower current variants within the same manufacturer portfolio.
