6609070-2

Overview

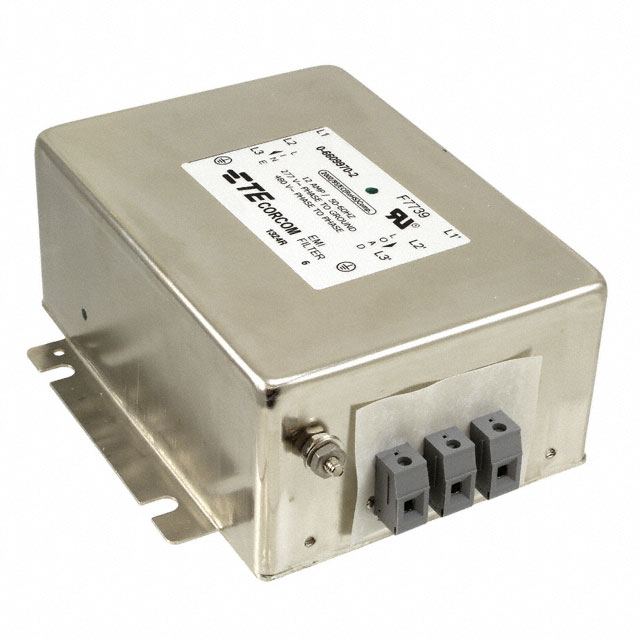

The TE Connectivity Corcom Filters 6609070-2 is a three-phase delta EMC/EMI line filter designed for chassis mounting. It operates at a rated current of 12 A and supports AC voltages of 277 V (line-to-neutral) and 480 V (line-to-line). The unit features a two-stage configuration and utilizes terminal block termination. It is certified by UR and functions within a temperature range of -10°C to 40°C at 50/60 Hz.

Feature Summary

• Three-phase delta configuration for industrial power applications
• Two-stage filtering architecture for enhanced noise suppression
• Chassis mount design with terminal block connections

Applications

• General industrial equipment
• Regenerative motor drives
• Power distribution systems

Procurement Notes

Verify the specific voltage rating requirements against the 277V and 480V specifications before procurement. Confirm that the chassis mounting dimensions align with the installation panel. Ensure the terminal block connection method matches the existing wiring infrastructure. Check for any updated certification marks required by local regulations.

Selection Notes

Select this component when a three-phase delta filter is required for 12 A applications. The two-stage design offers superior attenuation compared to single-stage units. Terminal block termination facilitates secure wiring in industrial environments. Verify compatibility with regenerative drive systems if applicable.

Part Context

This part belongs to the FCD series of Corcom filters, which are engineered for robust performance in demanding industrial settings. The series provides reliable EMI/RFI suppression for three-phase power lines. The FCD series is known for its durability and compliance with international safety standards.

Replacement Considerations

Public confirmed substitute part numbers: None available.
