6609070-3

Overview

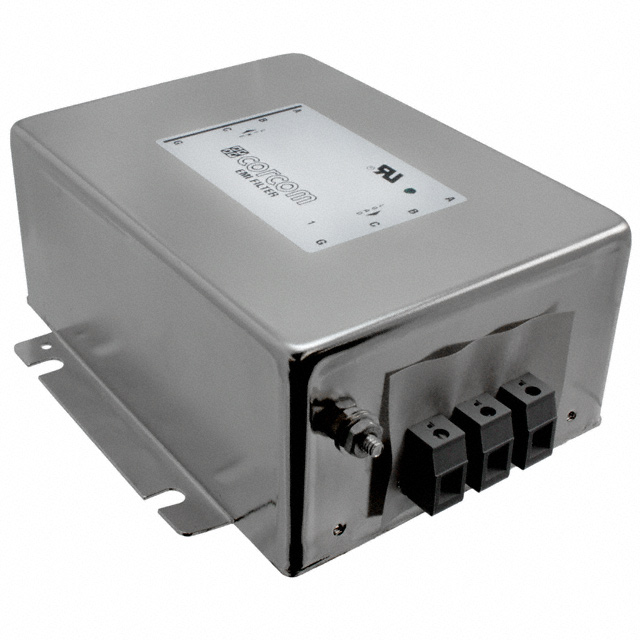

The TE Connectivity Corcom Filters model 6609070-3 is a three-phase (delta) EMC/EMI line filter designed for chassis mounting. It operates at a rated voltage of 277 VAC phase-to-neutral and 480 VAC phase-to-phase, with a continuous current rating of 16 A at 50/60 Hz. The unit features a two-stage filtering configuration and utilizes terminal block connections. Certified by UR, it functions within an operating temperature range of -10°C to 40°C.

Feature Summary

• Provides two-stage attenuation for electromagnetic interference in three-phase delta configurations
• Features robust chassis mount construction with terminal block termination
• Includes integrated voltage selection capabilities for specific circuit requirements

Applications

• Regenerative motor drive systems
• Industrial power conditioning equipment
• General purpose three-phase machinery protection

Procurement Notes

Verify the specific application environment against the -10°C to 40°C operating temperature limit before procurement. Confirm that the terminal block connection style matches the existing wiring infrastructure. Ensure the 16 A current rating and 480 VAC phase-to-phase voltage specifications align with the system design parameters to guarantee safe and compliant operation.

Selection Notes

Select this component when a two-stage solution is required for three-phase delta networks. The terminal block interface suits applications needing secure, tool-assisted wiring rather than quick-connect terminals. Consider the chassis mount form factor for integration into standard industrial enclosures where space and thermal management are critical design constraints.

Part Context

This part belongs to the FCD series of power line filters from TE Connectivity Corcom Filters. The series specializes in high-current industrial filtration solutions. The 6609070-3 variant specifically addresses the needs of regenerative drives and heavy-duty industrial loads requiring reliable EMI suppression in three-phase environments.

Replacement Considerations

Public confirmed substitute part numbers: None identified.
