6609070-7

Overview

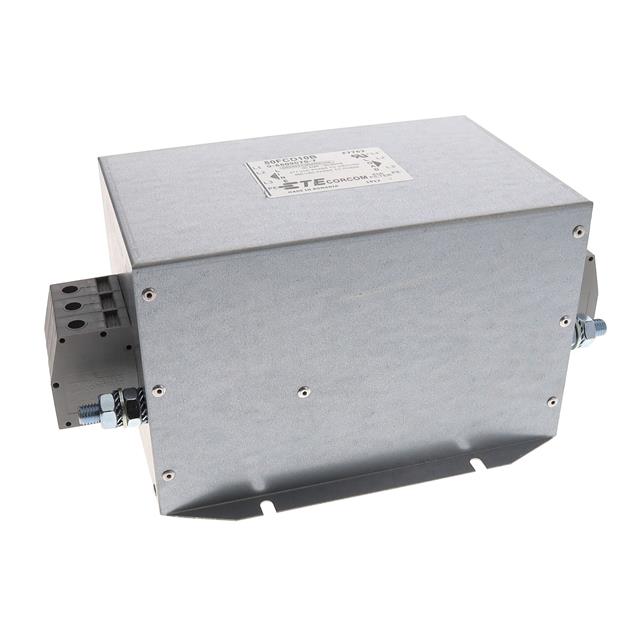

The TE Connectivity Corcom Filters model 6609070-7 is a three-phase (Delta) EMC/EMI line filter designed for chassis mounting. It supports a rated current of 80 A at 50/60 Hz with voltage ratings of 277 VAC line-to-neutral and 480 VAC line-to-line. The unit features a single-stage configuration and utilizes terminal block termination. Certified by UR, it operates within a temperature range of -10°C to 40°C.

Feature Summary

• Provides electromagnetic interference suppression for three-phase Delta power systems
• Engineered for high-current applications up to 80 Amperes
• Utilizes robust terminal block connections for secure electrical interfacing

Applications

• Regenerative motor drive systems
• Industrial machinery requiring EMI mitigation
• Three-phase power distribution panels

Procurement Notes

Verify the specific datasheet version corresponding to the manufacturing date, as component specifications may evolve. Confirm that the terminal block termination style matches the existing panel wiring infrastructure. Ensure the chassis mounting dimensions align with the enclosure design. Validate that the 80A rating meets the peak load requirements of the target circuit without exceeding thermal limits.

Selection Notes

Select this component when a single-stage solution is sufficient for the required attenuation levels in three-phase Delta configurations. The 80A capacity distinguishes it from lower-current variants in the FCD series. Consider the terminal block interface if screw-type connections are preferred over quick-connect styles found in other Corcom models. Ensure the operating environment remains within the specified -10°C to 40°C range for optimal performance.

Part Context

This part belongs to the TE Connectivity Corcom FCD series, which specializes in heavy-duty power line filters. The FCD line typically offers multi-stage filtering options for various phase configurations. Model 6609070-7 represents the high-current Delta variant within this family, focusing on industrial-grade durability and regulatory compliance for demanding power electronics environments.

Replacement Considerations

Public confirmed substitute part numbers: None identified.
