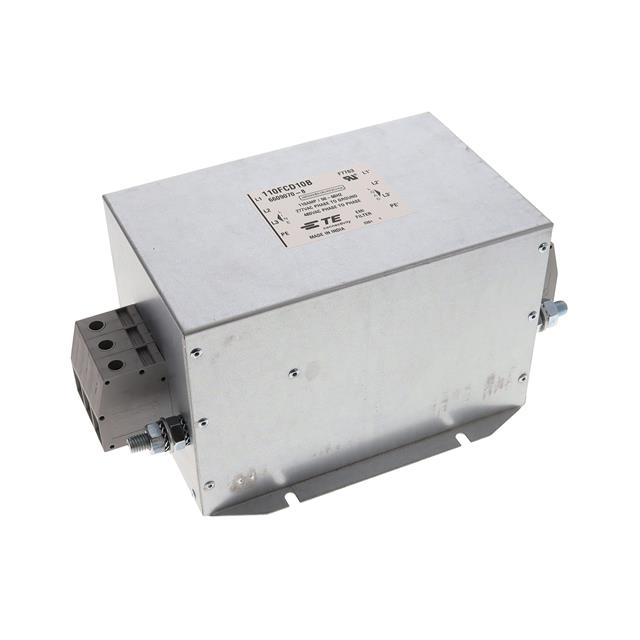

6609070-8

$531.73

Description：LINE FILTER 110A CHASSIS MOUNT
Series：FCD
Mfr：TE Connectivity Corcom Filters
Package：Box

SKU:53d908d1ddab Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 110A CHASSIS MOUNT
Series：FCD
Mfr：TE Connectivity Corcom Filters
Package：Box
Filter Type：Three Phase (Delta)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：110 A
Frequency - Operating：50 ~ 60Hz
Applications：Regenerative Motor Drive
Approval Agency：UL
Operating Temperature：-10°C ~ 40°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block, Threaded Post (M10)
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：277 V
Voltage - Rated AC (Phase to Phase)：480 V

Download product information

6609070-8

Overview

The TE Connectivity Corcom Filters model 6609070-8 is a three-phase (Delta) EMC/EMI power line filter designed for industrial applications. It supports a rated current of 110 A and operates at voltages up to 480 VAC. The unit functions as a single-stage filter within the FCD series, operating at frequencies of 50 Hz or 60 Hz. It features flange mounting and utilizes screw terminals with M10 threaded posts for secure electrical connections. The device is certified by CSA and UL standards.

Feature Summary

Provides wide-band RFI suppression for three-phase delta configurations
Utilizes robust screw terminal connections with M10 threaded posts
Designed for high-current industrial power line filtering

Applications

Industrial elevator systems
Escalator power circuits
Frequency converter installations

Procurement Notes

Verify that the specific installation environment matches the 480V AC rating and 110A current capacity. Confirm that the mounting panel thickness accommodates the flange design and that M10 threaded post terminals align with the available busbar or cable lug specifications. Ensure compliance with local electrical codes regarding EMI filtering in sensitive industrial zones.

Selection Notes

Select this component when high-current three-phase noise suppression is required for heavy machinery. The FCD series offers a single-stage configuration suitable for applications where space constraints preclude multi-stage designs. Verify that the screw terminal interface is compatible with the existing power distribution hardware before finalizing the selection.

Part Context

This component belongs to the Corcom FCD series, which specializes in high-power three-phase filtering solutions. The FCD line is engineered for demanding industrial environments requiring reliable electromagnetic interference reduction. It complements other TE Connectivity power conditioning products by providing standardized flange-mount options for large-scale equipment integration.
