6609070-9

Overview

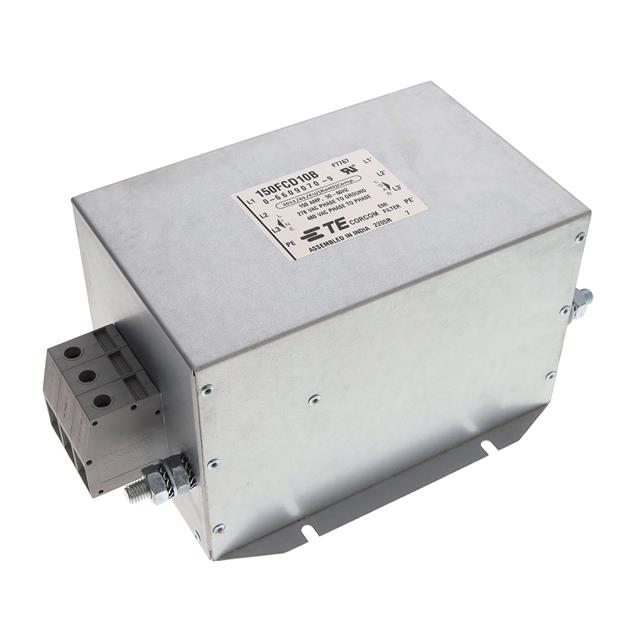

The TE Connectivity Corcom Filters model 6609070-9 is a three-phase Delta EMC/EMI line filter rated for 150 A at 480 VAC. Designed for 50/60 Hz operation, this single-stage unit provides wide-band RFI suppression to reduce electrical noise and conducted interference on power lines. It features flange mounting and screw terminal connections.

Feature Summary

• Provides wide-band RFI suppression for industrial applications
• Designed for three-phase Delta power line configurations
• Utilizes screw terminal connections for secure wiring

Applications

• Elevator systems
• Escalator systems
• Frequency converters

Procurement Notes

Verify the specific voltage rating and phase configuration against the application requirements before procurement. Confirm that the flange mounting dimensions and screw terminal specifications match the existing infrastructure. Ensure compliance with relevant safety certifications required for the intended industrial environment.

Selection Notes

Select this component when high current capacity of 150 A is required for three-phase Delta systems. Consider the single-stage design for cost-effective noise reduction in industrial settings. Evaluate the physical size and flange mounting constraints to ensure compatibility with the equipment enclosure.

Part Context

This part belongs to the TE Connectivity Corcom FCD series of power line filters. The series is engineered for robust performance in demanding industrial environments, offering reliable EMI/RFI filtering solutions for heavy-duty machinery and power distribution systems requiring significant current handling capabilities.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
