6609072-1

Overview

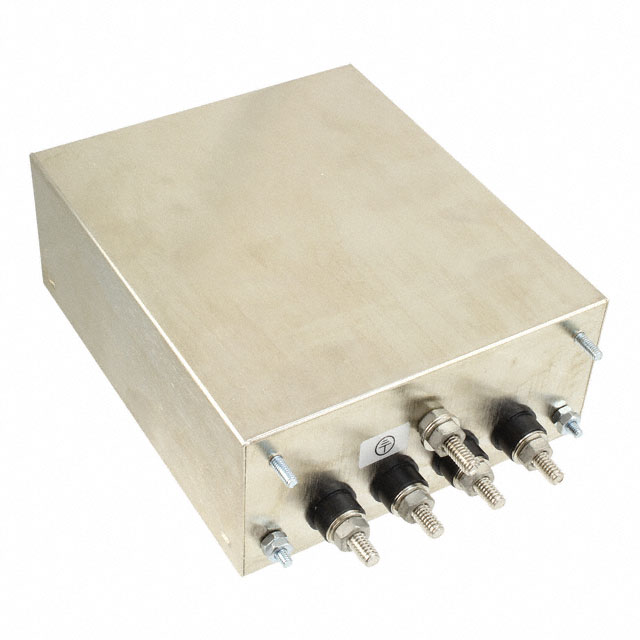

The TE Connectivity Corcom Filters model 6609072-1 is a three-phase (Wye) EMC/EMI line filter designed for chassis mounting. It supports a rated current of 20 A at 50/60 Hz and features a two-stage filtering configuration. The component utilizes threaded posts with a 1/4-20 specification for electrical termination, ensuring secure connection in industrial power distribution applications.

Feature Summary

• Provides two-stage EMI/RFI attenuation for three-phase Wye systems
• Features robust chassis mount construction with threaded post terminals
• Designed for high-current industrial power line filtering

Applications

• Industrial machinery power conditioning
• Three-phase motor drive input filtering
• Commercial power distribution units

Procurement Notes

Verify the specific voltage rating and capacitance values against the official datasheet before integration, as these parameters are critical for circuit compatibility. Confirm that the 1/4-20 threaded post termination matches the existing busbar or wiring infrastructure. Ensure the chassis mounting dimensions align with the equipment enclosure design to guarantee proper physical installation and grounding.

Selection Notes

Select this component when a three-phase Wye configuration is required for high-current applications up to 20 A. The two-stage design offers superior noise suppression compared to single-stage alternatives. Consider the threaded post termination style if screw-down connections are preferred over quick-connect tabs. Verify compliance requirements such as UL or VDE certifications match the target market regulations.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, which specializes in electromagnetic interference suppression for power electronics. The 6609072-1 variant specifically addresses three-phase needs, distinguishing it from single-phase models like the 10VS1 or 1EC4. It serves as a critical component for maintaining power quality in sensitive industrial environments.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Evaluate alternative three-phase filters from the same manufacturer only after verifying identical electrical ratings, mounting styles, and terminal configurations to ensure functional equivalence.
