Product Detailed Parameters
- Description：LINE FILTER 20A CHASSIS MOUNT
- Series：A
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk
- Filter Type：Three Phase (Wye)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：-
- Current：20 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL, VDE
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (1/4-20)
- Inductance：7mH
- Voltage - Rated AC (Phase to Ground/Neutral)：250 V
- Voltage - Rated AC (Phase to Phase)：440 V
Download product information
Overview

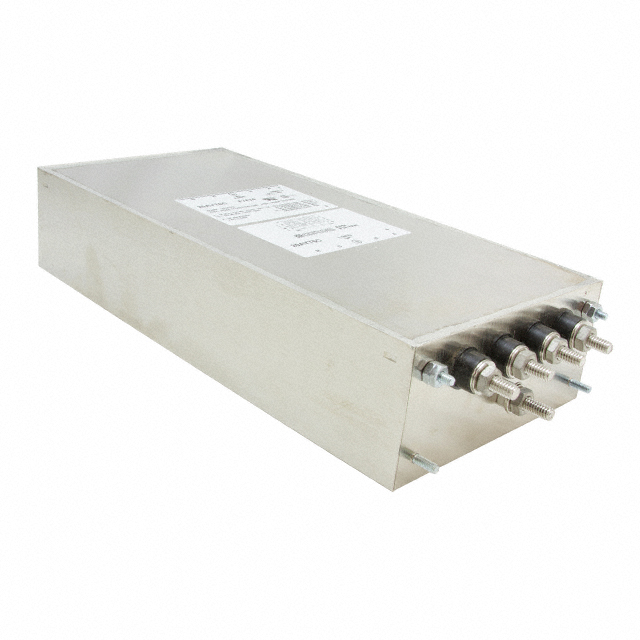

The TE Connectivity Corcom Filters model 6609073-1 is a chassis-mounted single-phase EMI/RFI line filter designed for AC power applications. It features a threaded post termination style (1/4-20) and provides an inductance of 7mH. The component is rated for a current of 20A and operates at voltages of 120VAC or 250VAC within a frequency range of 50/60Hz. This filter supports general-purpose filtering requirements and is suitable for environments operating between -10°C and +40°C.
Feature Summary
- Provides effective EMI and RFI suppression for AC power lines
- Utilizes a robust threaded post termination for secure mounting
- Designed for high-current single-phase applications
Applications
- Industrial equipment power input stages
- Medical device power supplies
- General-purpose electronic systems requiring noise reduction
Procurement Notes
Verify the specific voltage rating and current capacity against your system requirements before procurement. Confirm that the threaded post termination matches your panel mounting hardware. Check for RoHS compliance status if required by your manufacturing standards. Ensure the operating temperature range aligns with your environmental conditions. Review the datasheet for precise mechanical dimensions to validate chassis fit.
Selection Notes
Select this component when a 20A single-phase filter with 7mH inductance is required. Consider the threaded post termination if screw-down connections are preferred over quick-connect terminals. Evaluate the physical size constraints due to the chassis mount design. Compare against other Corcom series if different termination styles or current ratings are needed. Ensure the voltage rating meets the highest potential supply voltage in the application.
Part Context
This part belongs to the Corcom Filters family from TE Connectivity, specializing in electromagnetic interference suppression. The 6609073-1 is a specific variant within the broader lineup of power line filters. It complements other models offering different current ratings or termination methods. The product is engineered to meet international safety and EMC standards for commercial and industrial use.
Replacement Considerations
Consult the official Corcom selector chart for direct equivalents. Verify compatibility regarding current rating, inductance value, and termination type. Ensure any substitute part meets the same voltage and temperature specifications.
