6609073-2

Overview

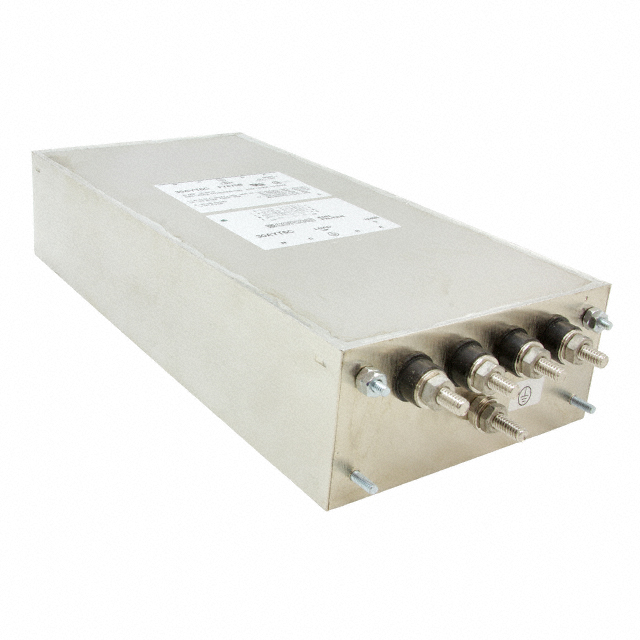

The TE Connectivity Corcom Filters model 6609073-2 is a three-phase (Wye) EMC/EMI line filter rated for 30 A at 50/60 Hz. It features a two-stage filtering architecture and utilizes threaded posts (1/4-20) for termination. The component is designed for chassis mounting applications.

Feature Summary

• Provides two-stage EMI/RFI suppression for three-phase power systems
• Utilizes threaded post termination for secure mechanical connection
• Designed for direct chassis mounting

Applications

• Industrial machinery power input stages
• Three-phase motor drive systems
• Commercial equipment requiring EMI mitigation

Procurement Notes

Verify current availability status as the product is listed as obsolete in public records. Confirm technical compatibility with existing chassis mounting holes and 1/4-20 threaded post requirements before procurement planning. Review official datasheets for final electrical specifications and certification details.

Selection Notes

Select this component for three-phase applications requiring robust EMI filtering. Ensure the system voltage and frequency align with the 50/60 Hz rating. Verify that the chassis provides adequate space for the unit's dimensions and thermal management needs associated with 30 A operation.

Part Context

This part belongs to the Corcom Filters series by TE Connectivity, specializing in electromagnetic interference suppression for power lines. It serves as a critical component for ensuring compliance with electromagnetic compatibility standards in industrial and commercial environments.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation due to the obsolete status of this specific model.
