Overview

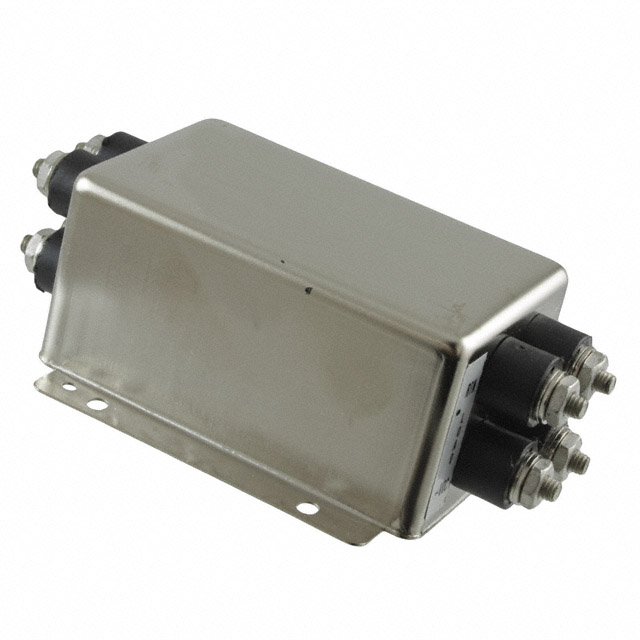

The TE Connectivity Corcom Filters model 6609074-1 is a DC EMC/EMI line filter designed for single-stage noise suppression. It features a current rating of 15 A and an operating voltage of 80 VDC. The component utilizes redundant stud input and output terminations, specifically threaded posts with a 10-32 thread size. This configuration ensures reliable electrical connections for direct current applications requiring robust EMI filtering capabilities.

Feature Summary

• Provides single-stage electromagnetic interference (EMI) and radio frequency interference (RFI) suppression for direct current circuits.
• Incorporates redundant stud input and output termination points to enhance connection reliability and mechanical stability.
• Designed for chassis or bulkhead mounting using standard threaded post interfaces.

Applications

• Direct current power supply input filtering
• Industrial control systems requiring EMI suppression
• Telecommunications equipment power stages

Procurement Notes

Verify the specific thread size and pitch of the redundant studs against the mating hardware requirements before integration. Confirm that the 80 VDC maximum operating voltage aligns with the system's peak voltage conditions. Ensure the 15 A continuous current rating exceeds the application's maximum load current to prevent thermal degradation. Check for any required isolation clearances based on the installation environment.

Selection Notes

Select this component when single-stage attenuation is sufficient for the target noise spectrum. The redundant stud design is critical for high-vibration environments where terminal integrity is paramount. Compare against other Corcom DC filters if higher voltage ratings or different termination styles are needed. Ensure the physical dimensions of the threaded posts fit the available panel cutouts and mounting constraints.

Part Context

This part belongs to the TE Connectivity Corcom DC Filter series, which specializes in low-voltage, high-current EMI solutions. The 6609074-1 variant is distinct from AC line filters due to its specific voltage rating and DC-specific internal topology. It serves as a dedicated component for protecting sensitive electronics from conducted disturbances in direct current power distribution networks.

Replacement Considerations

Public confirmed substitute part numbers: None identified in verified documentation.
