6609074-3

Overview

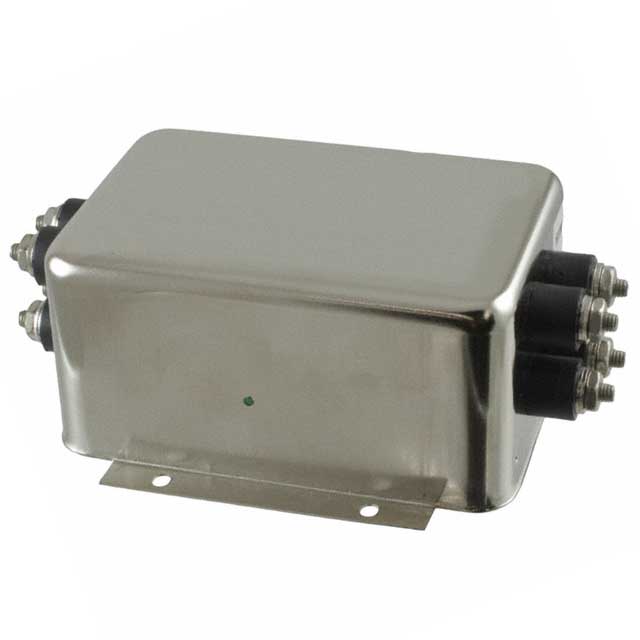

The TE Connectivity Corcom Filters model 6609074-3 is a redundant stud-mounted DC power line filter designed for high-current applications. It features a chassis mount configuration with terminal connections suitable for robust industrial environments. The component operates at a rated voltage of 80VDC and supports a continuous current of 30A. This single-phase filter provides EMI/RFI suppression for direct current circuits, ensuring signal integrity in sensitive electronic systems requiring reliable power conditioning.

Feature Summary

• Redundant stud mounting design for enhanced mechanical stability
• Capable of handling high current loads up to 30A
• Optimized for DC power line filtering applications

Applications

• Industrial control systems
• Telecommunications equipment
• Medical devices

Procurement Notes

Verify the specific datasheet version before procurement, as manufacturing locations or specifications may change. Confirm that the redundant stud mounting style matches your chassis requirements. Ensure the 80VDC rating and 30A current capacity align with your system's electrical parameters. Check for any recent product change notices regarding material composition or certification updates.

Selection Notes

Select this component when a robust DC filter with high current carrying capability is required. The redundant stud design offers superior vibration resistance compared to standard mounts. Ensure the application environment stays within the specified temperature range. Verify compatibility with existing chassis cutouts and terminal configurations before finalizing the selection.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, known for providing comprehensive electromagnetic interference solutions. The 6609074-3 specifically addresses the need for reliable DC filtering in demanding industrial settings. Its design focuses on durability and performance under high load conditions, making it a critical component for maintaining power quality in essential infrastructure.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's official selector guide for equivalent models within the Corcom DC filter lineup. Ensure any replacement maintains the same voltage, current, and mounting specifications.
