6609074-7

Overview

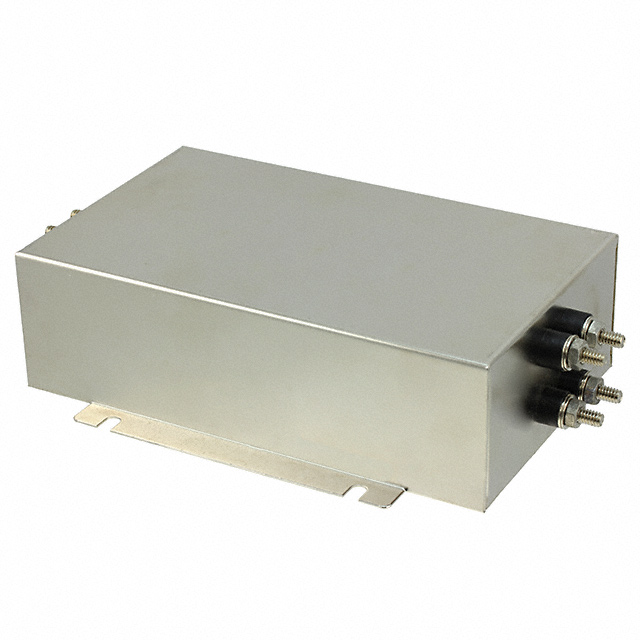

The TE Connectivity Corcom Filters model 6609074-7 is a single-stage DC EMC/EMI line filter rated for 100 A and 80 VDC. It utilizes a threaded post termination style with 1/4-20 threading for chassis mounting. This component is designed to suppress electrical noise in high-current direct current power lines, ensuring signal integrity and compliance with electromagnetic interference standards in industrial applications.

Feature Summary

• Provides single-stage EMI/RFI filtering for DC power circuits
• Engineered for high-current handling up to 100 Amperes
• Features robust threaded post termination for secure chassis installation

Applications

• Industrial DC power distribution systems
• High-current battery management units
• DC motor drive power inputs

Procurement Notes

Verify the specific voltage rating of 80VDC and current capacity of 100A against system requirements. Confirm the 1/4-20 threaded post interface matches the chassis mounting hardware. Ensure the single-stage filtering topology meets the required attenuation specifications for the target application environment.

Selection Notes

Select this component when high current DC filtering is required in a compact form factor. The threaded post design offers superior mechanical stability compared to quick-connect terminals for heavy-duty applications. Consider the single-stage limitation if higher attenuation levels are necessary for sensitive downstream electronics.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, specialized in power line conditioning. It complements other AC and DC filters in the portfolio by addressing high-amperage DC noise suppression needs where standard IEC receptacles are insufficient or inappropriate for the power delivery method.

Replacement Considerations

Public confirmed substitute part numbers: None available.
