Overview

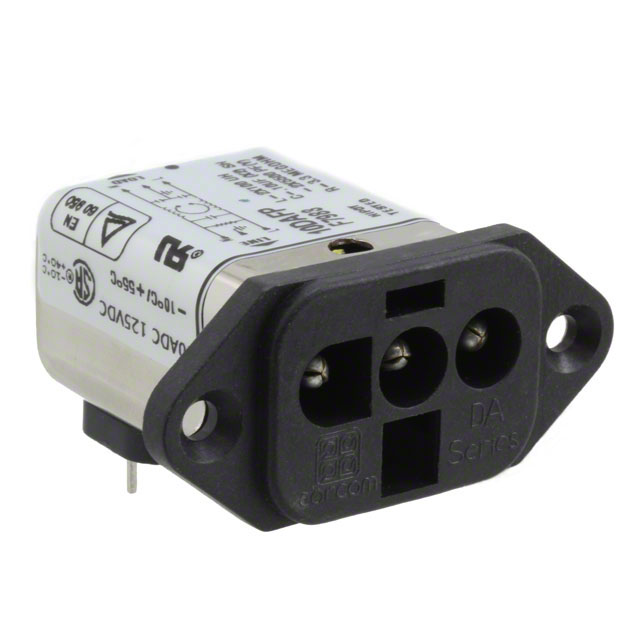

The TE Connectivity Corcom Filters model 6609075-7 is a single-phase EMC/EMI line filter module designed for panel mounting. It features a solder termination style and includes an integrated fuse holder, though the fuse itself is not included. The component is rated for a current of 10A and operates at a voltage of 125VDC. It serves to reduce electrical noise and interference in power lines within commercial applications.

Feature Summary

• Integrated EMI/RFI filtering capability for commercial use
• Includes a drawer-style fuse holder for circuit protection
• Designed for secure panel mounting with solder termination

Applications

• Commercial electronic equipment requiring noise reduction
• Power line filtering for DC circuits
• Industrial control panels

Procurement Notes

Verify the specific datasheet version, as documentation references may vary between 1-6609075-7.pdf and other identifiers. Confirm that the required fuse is sourced separately, as the unit ships without one. Ensure the 125VDC rating aligns with your system's operational voltage requirements before integration.

Selection Notes

Select this module when a 10A DC-rated filter with built-in overcurrent protection housing is required. The solder termination method necessitates compatible PCB or chassis wiring infrastructure. Verify that the physical dimensions and panel cutout requirements match the enclosure design constraints.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters. The 6609075-7 variant specifically addresses DC applications, distinguishing it from AC-only models in the broader portfolio. It represents a solution for maintaining signal integrity in sensitive DC-powered commercial systems.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Consult official TE Connectivity documentation for cross-reference information.
