6609976-1

Overview

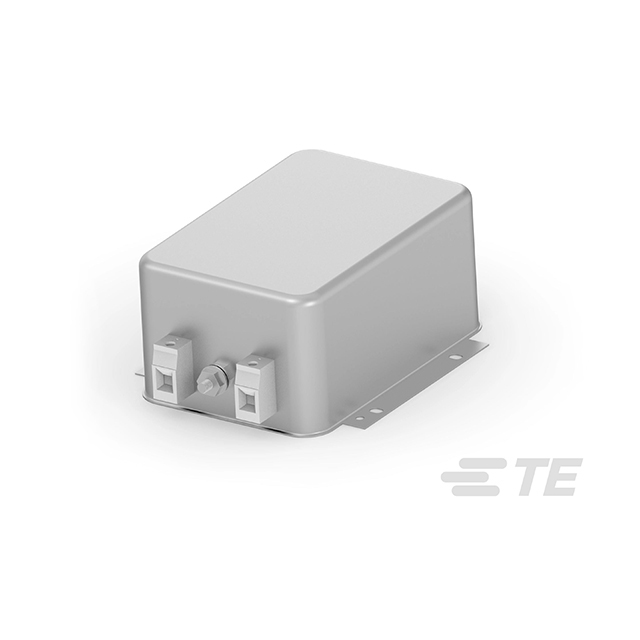

The TE Connectivity Corcom Filters model 6609976-1 is a single-phase power line filter designed for chassis mounting. It features a current rating of 16 A and operates at frequencies of 50/60 Hz. The unit utilizes terminal block connections for both input and output termination. Maximum leakage current is specified as 3.8 mA at 120VAC, 60Hz.

Feature Summary

• Single-phase EMI/RFI filtering capability
• Chassis mount installation style
• Terminal block input and output termination

Applications

• Industrial equipment power conditioning
• Medical device power supplies
• General purpose electronic systems requiring EMI suppression

Procurement Notes

Verify the specific datasheet version before procurement, as component specifications may evolve. Confirm that terminal block termination aligns with system wiring requirements. Ensure chassis mounting provisions match the enclosure design. Check for any recent product change notifications affecting compliance or physical dimensions.

Selection Notes

Select this component when a 16 A single-phase filter with terminal blocks is required. Consider the 3.8 mA leakage current limit for sensitive applications. Verify that the chassis mount form factor fits the available space. Compare against other Corcom series if different termination styles are needed.

Part Context

This part belongs to the TE Connectivity Corcom Filters lineup, which specializes in electromagnetic interference suppression for power lines. The 6609976-1 variant is specifically engineered for higher current applications compared to lower-rated models in the same family, utilizing robust terminal block interfaces for secure electrical connections.

Replacement Considerations

Public confirmed substitute part numbers: 1-1609112-2.
