6609976-2

Overview

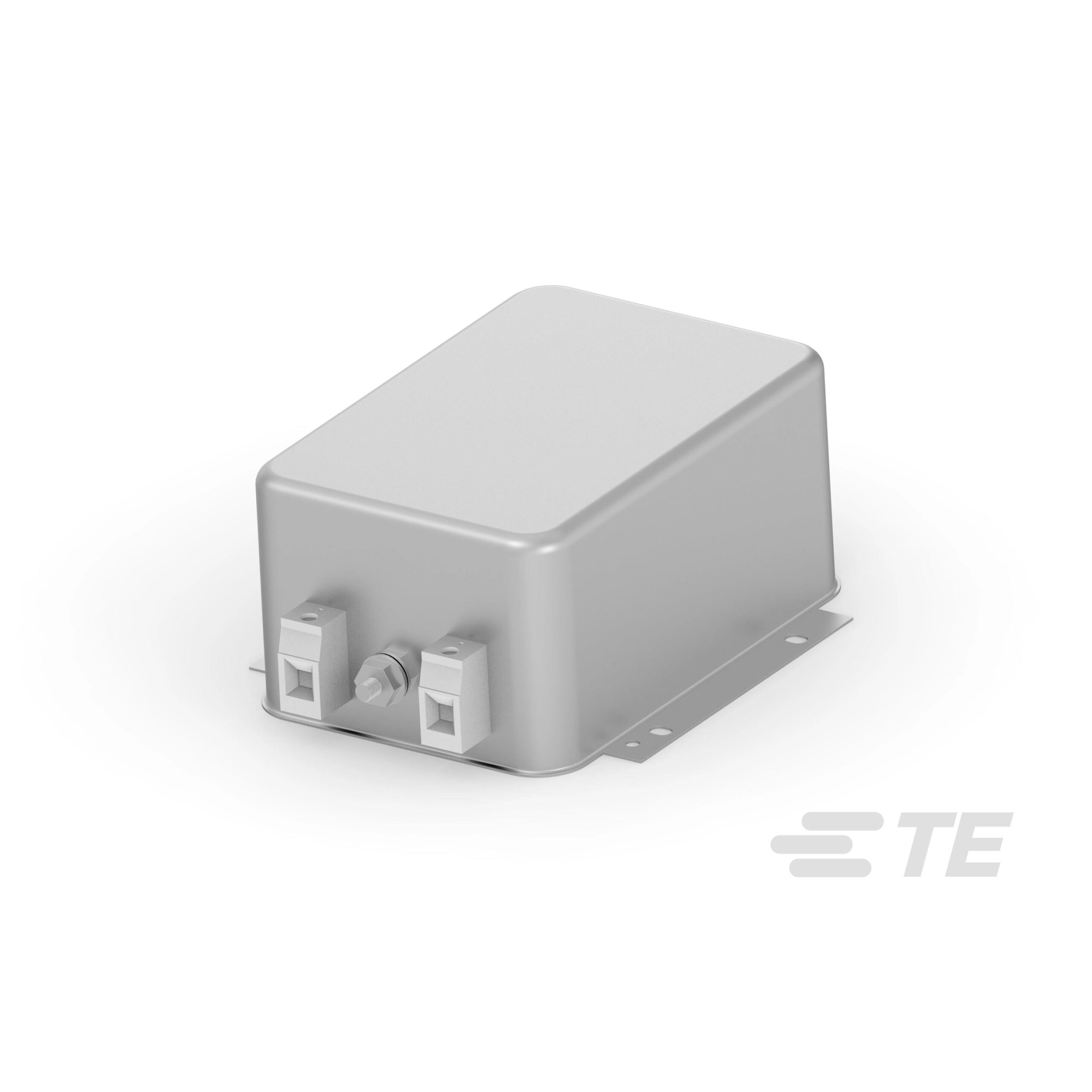

The TE Connectivity Corcom Filters 6609976-2 is a single-phase EMC/EMI line filter designed for chassis mounting. It supports a rated current of 25 A and operates at AC voltages up to 250V within the 50/60Hz frequency range. The component features a single-stage configuration with terminal block termination. It is certified by CSA, UR, and VDE agencies.

Feature Summary

• Provides electromagnetic interference suppression through single-stage filtering architecture
• Utilizes robust terminal block connections for secure electrical integration
• Engineered for direct chassis mounting applications

Applications

• Industrial machinery power input stages
• Commercial equipment requiring EMI mitigation
• General-purpose AC power line conditioning

Procurement Notes

Verify the specific datasheet version and certification marks (CSA, UR, VDE) required for your target market before ordering. Confirm that the terminal block interface matches your wiring harness specifications. Ensure the chassis mounting dimensions align with your enclosure design constraints prior to procurement.

Selection Notes

Select this component when a 25 A single-phase filter is required for chassis installation. The terminal block interface suits applications needing secure screw-down connections rather than quick-connect tabs. Verify that the single-stage attenuation meets the specific EMI noise reduction requirements of the system.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for industrial and commercial electronics. The 6609976-2 variant specifically addresses high-current single-phase applications where chassis mounting and terminal block connectivity are preferred over panel-mounted IEC receptacles.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation.
