6609976-3

Overview

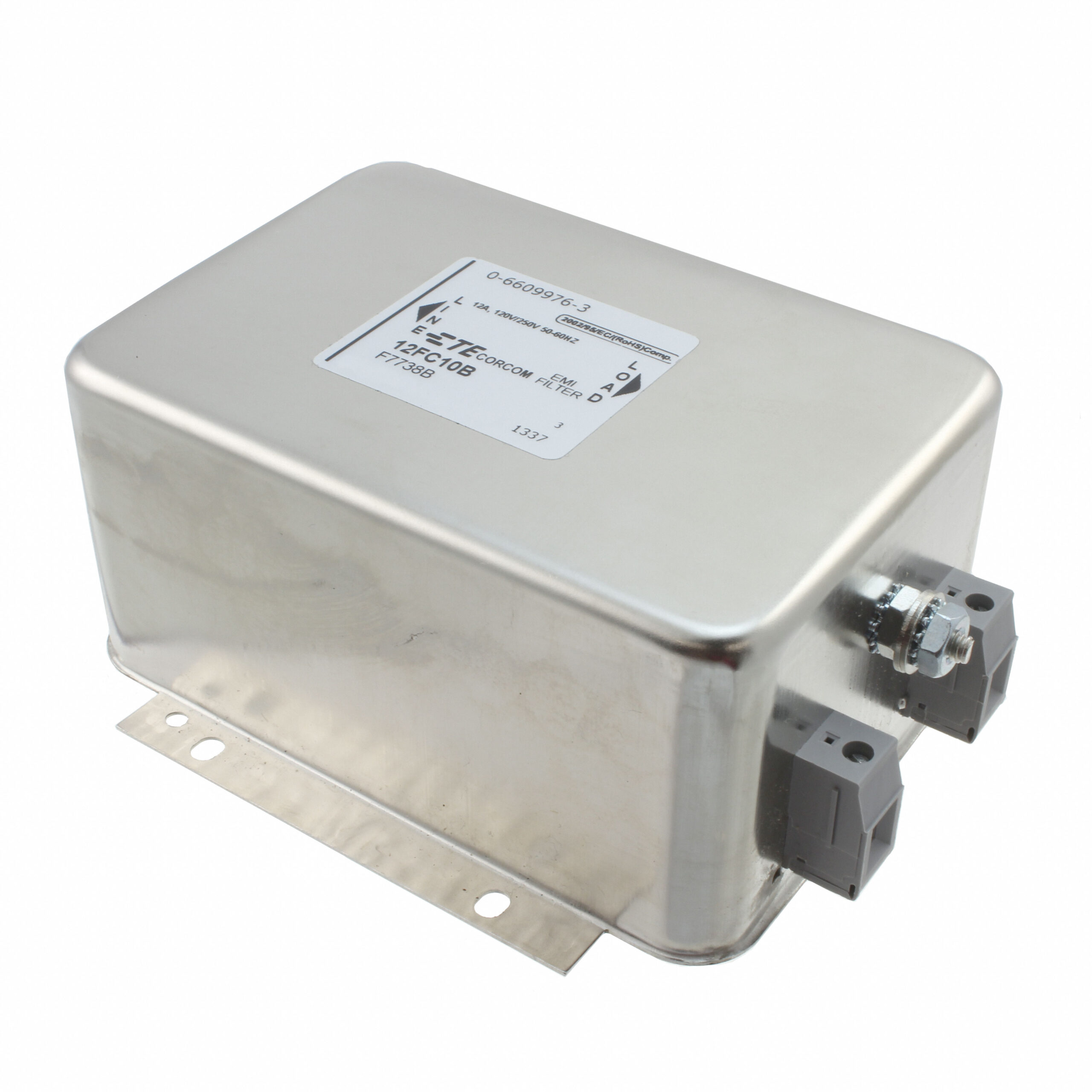

The TE Connectivity Corcom Filters model 6609976-3 is a power line filter designed for EMI/RFI suppression. It operates at 50/60Hz with a rated voltage of 250VAC and a current capacity of 10A. The unit features a chassis mount installation style and utilizes faston terminals for connection. This component belongs to the P series and is certified by CSA, UR, and VDE standards.

Feature Summary

• Provides EMI/RFI noise filtering for sensitive equipment such as inverters and power drive systems
• Features a two-stage configuration for enhanced signal integrity
• Includes integrated shielding for improved electromagnetic interference protection

Applications

• Inverter noise suppression
• Power drive system protection
• General industrial power conditioning

Procurement Notes

Verify the specific datasheet version before procurement, as product change notifications may exist for this part number. Confirm that the required certification marks (CSA, UR, VDE) align with your target market regulations. Ensure the chassis mounting dimensions and faston terminal specifications match your existing panel design constraints prior to finalizing orders.

Selection Notes

Select this component when a single-phase, two-stage filter is required for 10A applications. It is suitable for environments where chassis mounting is preferred over panel cutouts. Consider the operating temperature range and leakage current limits if integrating into medical or highly sensitive electronic assemblies.

Part Context

This part belongs to the TE Connectivity Corcom Filters P series, which specializes in power line filters. The model serves as an alternative within the broader Corcom lineup, offering specific attenuation characteristics for industrial power electronics. It shares design principles with other chassis-mountable units in the manufacturer's portfolio.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
