6609976-4

Overview

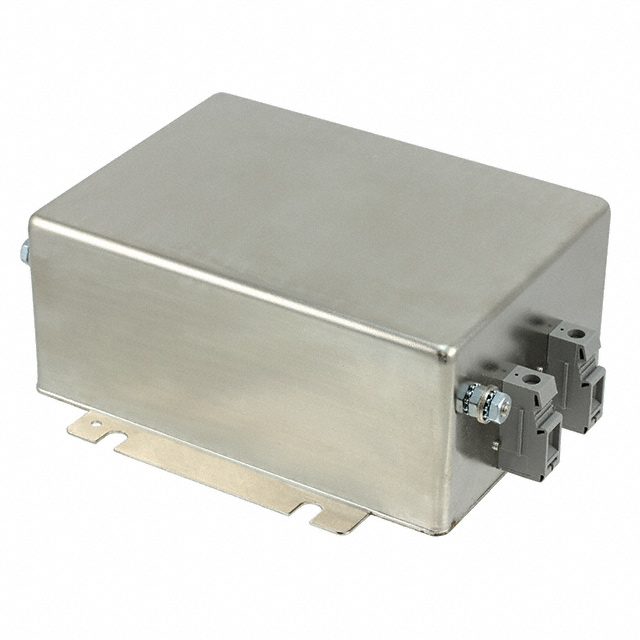

The TE Connectivity Corcom Filters 6609976-4 is a single-phase EMC/EMI line filter designed for chassis or panel mounting. It features a flanged installation style with terminal block input and output connections. The component is rated for a continuous current of 36 A at an AC voltage of 250 VAC, operating within the standard 50/60 Hz frequency range. This single-stage filter provides general-purpose noise suppression for power lines.

Feature Summary

• Single-stage EMI/RFI filtering configuration
• Terminal block input and output connectivity
• Flanged mechanical design for secure mounting

Applications

• Industrial machinery power entry
• Commercial equipment power supplies
• General-purpose power line noise suppression

Procurement Notes

Verify the specific datasheet for the 6609976-4 to confirm detailed attenuation curves and physical dimensions. Ensure the terminal block specifications match your wiring requirements. Confirm compliance certifications such as UL or CSA are valid for your target market before finalizing procurement.

Selection Notes

Select this model when a high-current capacity of 36 A is required for single-phase applications. The terminal block interface is suitable for robust industrial wiring environments. Consider the flanged mounting style if panel thickness compatibility is a priority for the enclosure design.

Part Context

This component belongs to the Corcom FC series of power line filters. The series offers various current ratings and connection types. The 6609976-4 specifically addresses high-load applications requiring reliable electromagnetic interference reduction in AC power circuits.

Replacement Considerations

Consult official TE Connectivity substitution guides for verified equivalents. Cross-reference current ratings and terminal block configurations to ensure functional compatibility with existing system designs.
